Mechanical PTO Clutch SP318 - SAE #0 Ball Bearing Collar
Industrial Clutch Parts Ltd. supplies a complete range of WPT mechanical PTO clutches. Together, ICP and WPT have built an international reputation for excellence in the mechanical power transmission industry.
WPT SP318 is a mechanical power take-off clutch. Available in a wide range of sizes for OEM applications and aftermarket retrofits.
- Model: SP318, TD style, ball-bearing collar, SAE #0
- Pilot bearing: 120 mm
- OEM replacement: Twin Disc SP318
OEM Cross Reference Table
| Manufacturer | OEM Part Number |
|---|---|
| Twin Disc | SP318 |

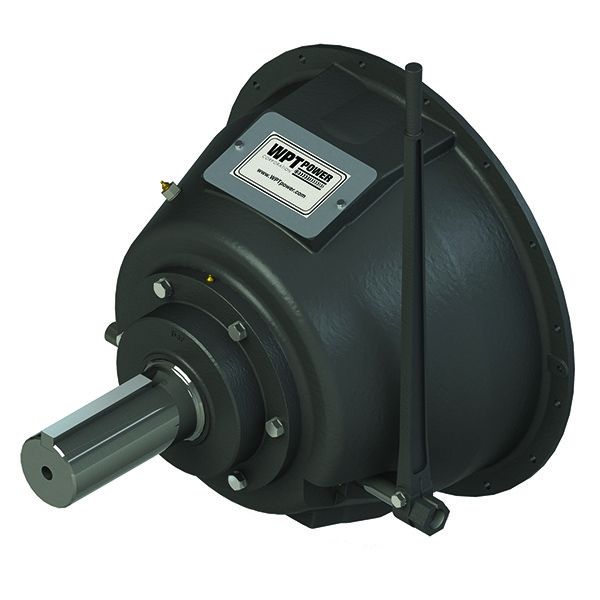

SP318 PTO Clutch with Ball Bearing Collar
WPT mechanical power take-offs consist of a lever-actuated clutch with a shaft and bearings mounted in a rigid cast housing. Its simplified installation and sealed-for-life pilot bearings minimize machine downtime.
Available in a wide range of sizes for OEM’s applications and aftermarket retrofits. The mechanical PTOs are designed to increase engine life and uptime while simplifying installation times. Built with sealed-for-life pilot bearings to eliminate lubrication problems. Ball-bearing throw-out collars are optional on 10", 11.5". 14", 18" and standard on 311 PTOs. All drive rings are manufactured from ductile (nodular) iron and steel materials as standard. Roller bearings are available for customers requiring higher sideloads.
ICP supplies a complete range of heavy duty kevlar gear tooth friction discs. Best suited for heavy shock load applications that require extra tooth strength.
| New WPT Code | Old WPT CODE | Description |
|
P18-30AC-000
|
WTD-18-300 | SP318 MECH PTO,SAE #0 BELLHOUSING,120MM PILOT BEARING |
| WTD-18-301 | SP318 MECH PTO,SAE #0 BELLHOUSING,120MM PILOT BEARING |
