Gummi Air Clutch & Drum Brake - Type FKR
Industrial Clutch Parts Ltd. supplies a complete range of Gummi Drum Clutches and Brakes. The expanding elements inflate radially towards the inner edge of the drum when pressurized.
Gummi FKR units are commonly referred to as couplings. The neoprene rubber facing engages with the drum directly. FKR couplings provide friction to generate significant torque within a small package.
Features:
- Torque Ratings: up to 83,500 lb-in @75 PSI & 100 RPM
- Max. Speed: 1,800 rpm
- Max. Pressure: 75 PSI (5.2 bar)

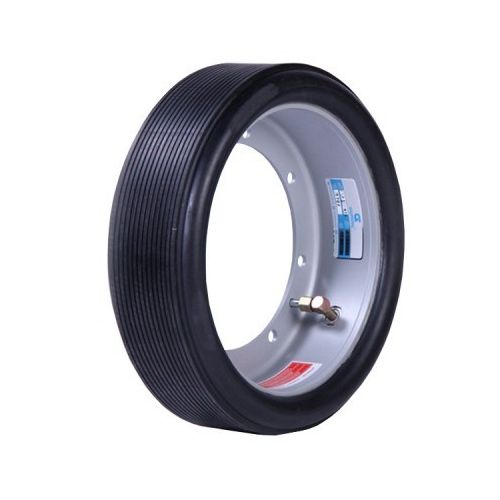

Gummi FKR Air Clutch & Brake
Industrial Clutch Parts Ltd. supplies a complete range of Gummi FKR Air Clutches & Drum Brakes. Suitable for various applications used in industries such as; Laundry, Pulp and Paper, Textile, Tire Fabrication, and Marine.
FKR units are often referred to as a coupling, as it exploits a neoprene rubber facing that engages the drum directly. This process results in a friction force, which permits a large amount of torque within a small package.
The expanding neoprene rubber facing engages with the interior diameter of the drum directly, greatly increasing its contact and grip. The FKR element offers advantages of both a flexible and disconnect coupling in applications where there is no speed differential between the driving and driven components during an engagement.

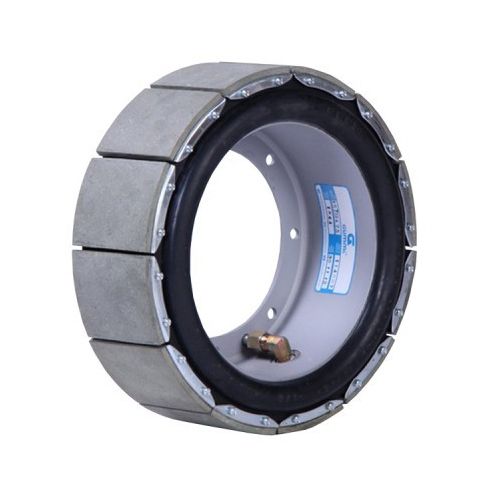

FKR elements are identified in the same way as FKE elements. The smallest element expands on an inner diameter of 3 inches (76 mm), while largest on a drum with an inner diameter of 24 inches (610 mm).
Standard Sizes:
- 6FKR200, 8FKR250, 10FKR300, 12FKR350, 21.5FKR475, 24FKR475
