Goizper Pneumatic Safety Brake - 5.36 Series
Brand:
Goizper
Code:
Goizper 5.36 Series
Industrial Clutch Parts Ltd. supplies a complete range of Goizper pneumatic multi-disc clutches. Available in various sizes that cover a wide range of torques.
Goizper 5.36 model is a spring-applied pneumatic safety brake. There are different combinations of spring force and a number of friction discs configurations.
- Torque: 185 - 16,160 Nm
- Max. speed: 2800 - 280 r/min
Goizper Pneumatic Safety Brake - 5.36 Series
Goizper 5.36 series is a pneumatic safety brake, also known as negative brakes. The spring-applied, air released brake generates a braking force in the absence of air pressure by the use of springs. When air pressure is applied, springs are released.

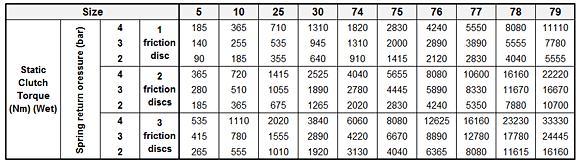

Technical Data:
