700 TW - Wind turbine Yaw Control Gear Motor

Code: ICP-2103

700 TW - Wind turbine Yaw Control Gear Motor

Bonfigliol 700 TW - Wind Turbine Yaw Control Gear Motor Pitch Control

  • High torque capacity

  • High transmissible torque

  • High shock resistance

  • Designed for heavy duty

Planetary gear units for wind turbines for Yaw drive.

For further information, please contact us at:

Call +44 1663 734627
Get A Quote
98 100 35

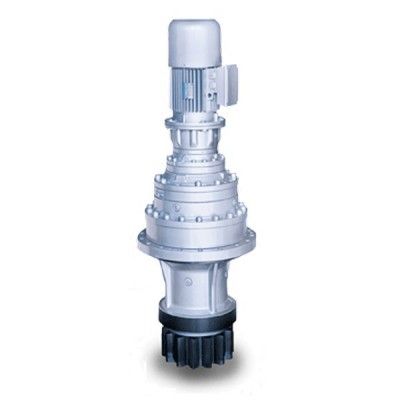

main product photo

700 TW - Wind turbine Yaw Control Gear Motor

The 700T series wind turbine yaw control gear motors are used by a number of leading wind turbine manufacturers thanks to their advanced technical features, creating the highest level of performance.

Features:

  • Depending on the required ratio, there can be from 3 up to 5 reduction stages (all of them with a planetary design).

  • Each stage may have from 3 up to 4 planets (to increase the deliverable torque).

  • The gears are made of alloyed steel and are heat treated (case hardening for suns & planets, induction hardening or nitriding for internal toothed rings).

  • The planets are supported by roller bearings or full rollers track bearings to obtain an high efficiency during the phases of starting and running.

  • The output housing is made by nodular cast iron and designed to hold the heavy loads generated during the machine’s job.
