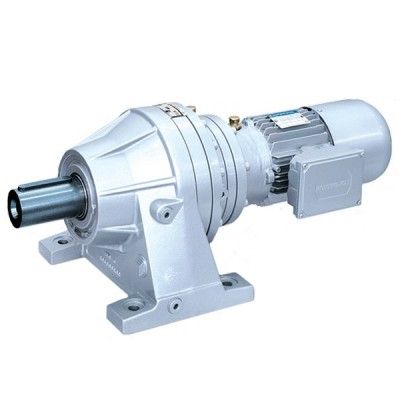

300 - Planetary gear motor
Brand:
Bonfiglioli
Code:
ICP-2102
300 - Planetary gear motor
The units of the 300 Planetary Gear Motor series are compact and extremely powerful.
It is the powerful solution to all heavy duty applications.
300 Planetary gear motor series
Their planetary drive train makes them the ideal choice for all the severe duty applications where shock loadings and impacts are more the rule than the exception.
The product configuration is highly versatile, due to several options as far as the mounting, the gear layout, the output shaft and the motor interface. All the features are available for each of the 20 finely spaced frame sizes, spanning over the 1.250 - 1.286.000 Nm torque range.
The 300 Planetary Gear Motor series features:
- Safe and reliable.
- Compact yet powerful.
- Mechanical rating (n1 = 1500 min-1): up to 450 kW
- Gear ratios: 3.4 - 5234
- DC and AC supply.
- Faster brake reaction through electronically controlled rectifier.
- Optional thermistors and thermostat sensors
- Optional independent forced cooling
- Optional line driver and push-pull incremental encoder.
Output
- Foot and flange mounted.
- Output shaft: keyed solid, splined, splined hollow,
- Hollow shaft with shrink disc.
Input
- IEC and NEMA motor adaptors
- Solid input shaft with or without fan cooling - inch or metric dims.
Applicable AC motors
- Integral motors and brake motors - M series / ME series
- IEC-normalized motors and brake motors - BN series / BE series
- Single and dual speed motors
