Eaton Airflex Spring Applied Drum Brakes - CS

Brand: Eaton Airflex
Code: Drum Brake - CS

Industrial Clutch Parts Ltd. supplies a complete range of Eaton Airflex spring-applied drum brakes. Designed for moderate speed, high torque cycle applications.

CTE elements are recommended for low to medium braking requirements. Manufactured as unidirectional brakes, developing substantially less torque in the reverse drum rotation than in the forward drum rotation.

  • Torque capacities: up to 2,235 Nm
  • Max. speed: 1800 rpm
  • Applications: conveyors, draglines, hoists, power shovels, stamping presses
Out of stock

For further information, please contact us at:

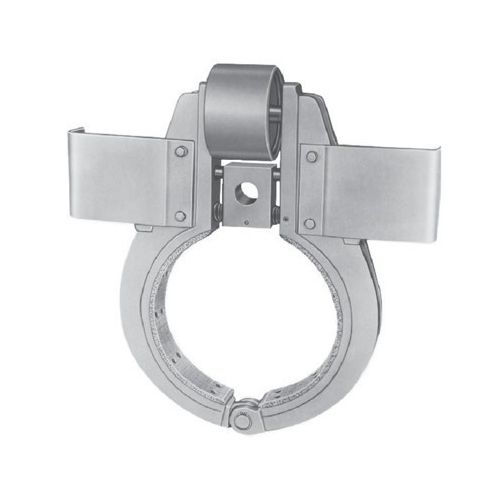

Eaton Airflex Spring Applied Drum Brakes - CS

Eaton Airflex spring-applied drums automatically engage in the event of air pressure or power loss. Engineered for many moderate-speed, high-torque cyclic applications. Spring applied drum brakes maximize operations and protect machine equipment. A flow control valve is often required in order to regulate fast brake stopping times.

CS drum brakes incorporate a two shoe drum design. Manufactured to be self-energizing when mounted with the proper drum rotation. The brake operates in a single direction, developing less torque in the reverse direction of drum rotation.

Standard Sizes:

  • 4CS150, 6CSA200, 9CSA200, 12CSA200, 15CS300, 18CS300

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Brake
Brand Eaton Airflex
PDF Catalogue PDF Download Download
Industry Applications conveyors, draglines, hoists, theatre and amusement, power shovels, rubber and plastic, stamping presses
Actuation Method Pneumatic
Actuation Type Active
Brake Type Drum
Compares With Wichita
Friction Material Organic
Max. RPM 1800
Max. Working Pressure 110 psi
Minimum Release Pressure 60 - 75psi
Torque Rating up to 2,235 Nm
Weight Range 11 - 115 lb
