Danfoss Airflex Quick Release Valves
Industrial Clutch Parts Ltd. supplies a complete range of Eaton Airflex quick-release valves (QRV). A pneumatic in-line, three-way valve that automatically closes when pressurized and opens to exhaust when a pressure drop occurs in the supply line.
Airflex quick-release valves are available in four basic valve sizes. Models are available with inlet ports suitable for either pipe or tubing connections. Mufflers are also available to reduce exhaust noise.
- Max. operating pressure: 150 psi
- Min. sealing pressure: 2 psi
- Cylinder port: 3/8", 1/2", 3/4", 1" NPT
Eaton's Airflex Quick Release Valve (QRV)

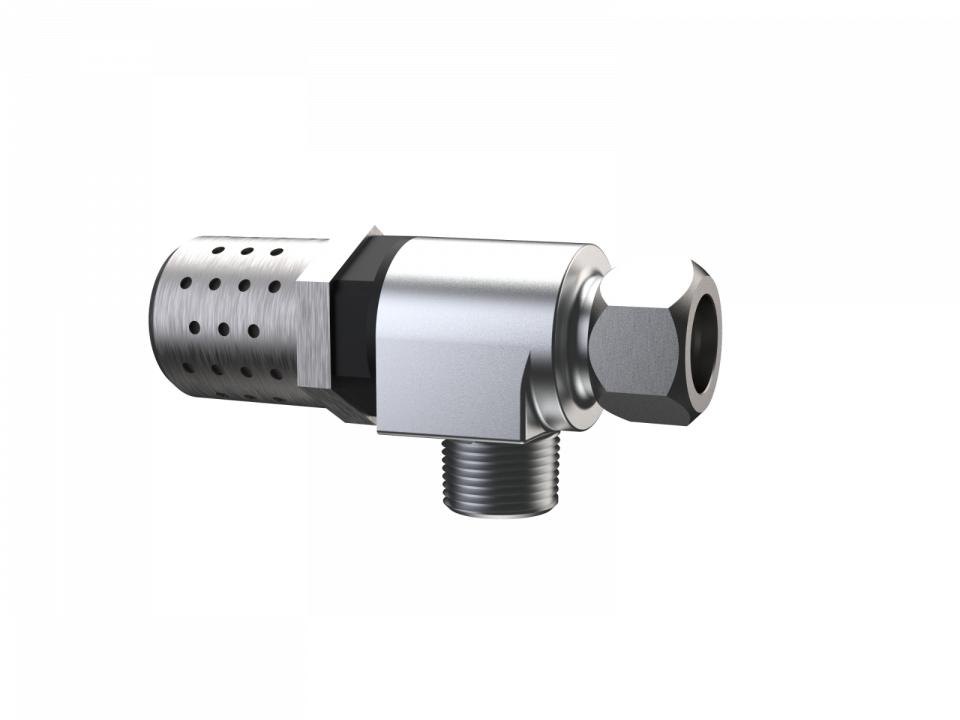

Airflex quick release valve (QRV) is a pneumatic in-line, three-way valve designed to automatically close upon pressurization and open to exhaust when a pressure drop occurs in the supply line. The valve provides an exhaust port close to the pressurized chamber of the device being controlled rather than exhausting through long supply lines and/or control components. The end result is a reduction in lag time between the signal to exhaust and response.
