Goizper Electromagnetic Mono-Disc Clutch - 4.60, 4.61 & 4.61B Series
Industrial Clutch Parts Ltd. supplies a complete range of Goizper electromagnetic mono-disc clutches.The single-disc clutch is used to drive and disengage machines.
Goizper 4.60, 4.61 & 4.61Bare electromagnetic stationary-field single-disc clutches. The special construction can be applied to various applications, such as wrapping machines, printing machines, and computers.
- Torque: 2 - 480 Nm
- Power: 10 - 82 W
- Voltage: 24V

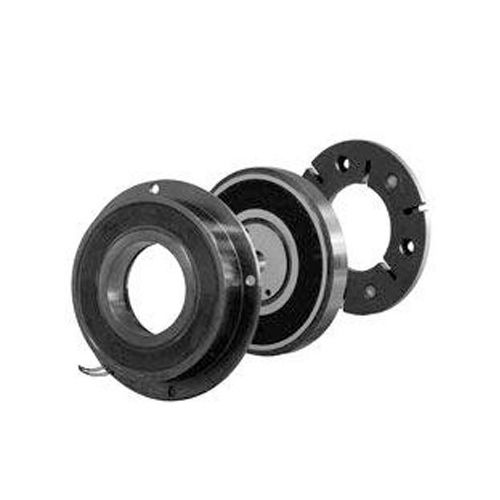

Goizper Electromagnetic Mono-Disc Clutch Series 4.60, 4.61 & 4.61B
Goizper 4.60, 4.61 & 4.61B models have been manufactured with a coil body and rotor mounted on the bearing. Enabling a much easier installation on your machine. As well as the bending spring, the armature is equipped with a core to fit on the shaft for faster clutching and braking.
The self-adjusting clutches operate within broad limits and the torque does not vary once the first adjustment wear is complete. The clutch is free from backlash and the release springs ensure zero residual torque.
Electromagnetic mono-disc clutches are suitable for dry-running operations. The friction discs must be protected against all oil or grease projection. As the friction in clutching also takes place between metal parts, it is normal that grooves and scratching occur with time.
Technical Data:
