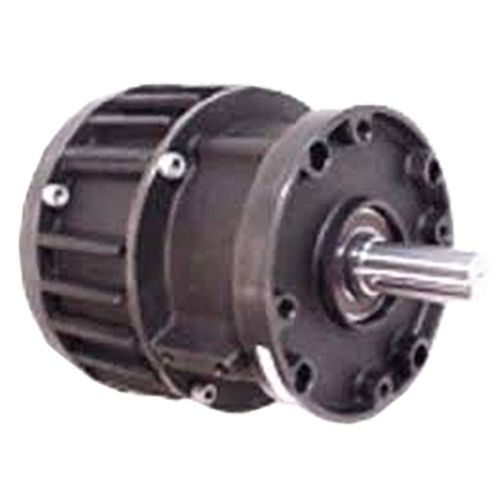

Nexen Enclosed Clutch/Brake Type FMCBE

Nexen Enclosed Clutch/Brake Type FMCBE

Nexen's unique locking bar system prevents the key on the output shaft from tipping in the keyway, eliminating the possibility for key and keyway damage that results in a loss of productivity. The single double-acting piston prevents overlap of the clutch and brake functions.

Features:

• Nickel-plated housing and flanges

• Locking key will eliminate keyway

• An unparalleled positive connection for maximum torque.

• A stainless steel output shaft.

• Single double-acting piston prevents overlap of the clutch and brake functions

• Eliminates key and keyway damage that results in a loss of productivity.

• Input shaft key secured with a set screw.

• The input and output shaft key configuration delivers optimum positive connection for superior torque transmission.

• Eliminates the need for quick exhaust valves.

CHARACTERISTICS:

• IEC or NEMA input and output flanges

• Enclosed design

• Automatic facing wear compensation

• High cooling capacity

• Shaft diameter: 14 to 42mm; 0.500" to 1.625"

• 115 Volt is standard on FMCBE

• Compatible with C-face motors up to 2 HP for absolute control.

Options:

• An optional nickel-plated input unit and foot mounts are available for right-angle drive applications.

• The Integral Valve is available for 12, 24 and 115 volt systems.
