Nexen Air Engaged Drum Brake Type J & K
Nexen Air Engaged Drum Brake Type J & K
Nexen's Air Actuated Drum Brakes provide accurate tension control, light duty stopping, holding or continuous braking.
Drum Brake Models:
- J & K

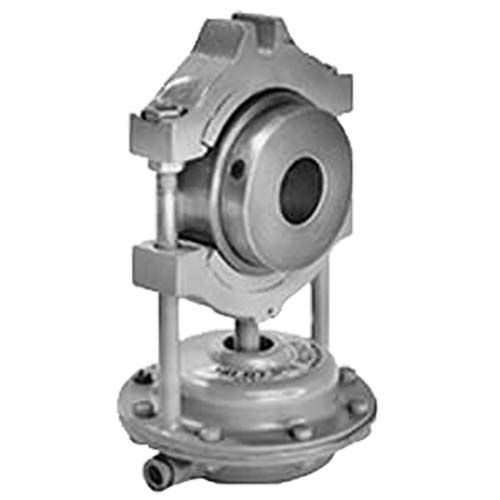

Nexen Air Engaged Drum Brake Type J & K
Nexen's J & K Drum Brakes are Air Actuated for accurate, economical operation. Nexen provide two drums for each model, either with standard bore or no bore for customization.
These brakes mount directly on shaft or on a self-centering mounting bracket.
Characteristics:
-
Static torque at 6 bar: 46Nm (J) 89Nm (K, Loco); 150Nm (K, Std)
-
Static Torque capacity up to 1200 In. Lbs. @ 80 psi
-
Thermal Horsepower rating up to 0.500.
-
Drum diameters: 69.9mm(2.75") and 101.6mm(4")
-
Max. speed: 5500 RPM
-
Bores: 0-50mm
Features:
-
High cooling capacity
-
High friction work capacity
-
Self adjusting for friction wear
-
Long wearing friction linings
-
Standard or Low coeffecient facings
Options:
-
Self centering support bracket
-
Order Brake & Drum separately.
