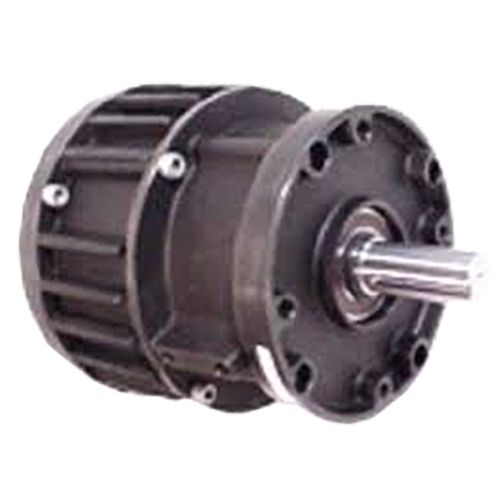

Nexen Enclosed Clutch/Brake Type FMCBES
Nexen Enclosed Clutch/Brake Type FMCBES
For applications where safety is the concern, this unit will engage the brake in the event of air pressure loss.
Flange Mounted
Enclosed
Air Engaged Clutch
Spring Engaged Brake
Optional Input Shaft and Feet
Nexen Enclosed Clutch/Brake Type FMCBES
FMCBES Flange Mounted Enclosed Clutch-Brakes come with a spring engaged brake and air engaged clutch. For applications where safety is the concern, this unit will engage the brake in the event of air pressure loss.
Meets NEMA standard 1.26.5 (IP54) for waterproof machines. Flange mounts directly to motors and reducers. Compatible with C-face motors up to 1.5 HP providing absolute control.
CHARACTERISTICS:
IEC or NEMA input and output flanges
Clutch torque: 27 to 104Nm at 6bar
Brake torque: 18 to 103Nm at 0bar
Enclosed design
High cooling capacity
Shaft diameter: 14 to 42mm; 0.500" to 1.625"
OPTIONS:
Mounting Feet
Input Shaft Module
Available in either electroless nickel plating or black oxide coating.
