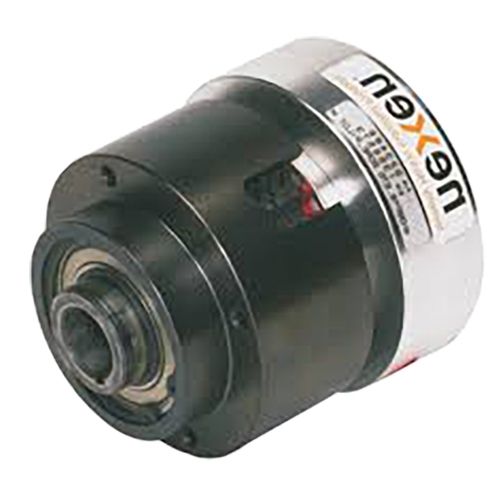

Nexen Pilot Mount Multi Disc Clutches Type 4HP
Brand:
Nexen
Code:
Pilot Mount Multi Disc Clutches Type 4HP
Nexen Pilot Mount Multi Disc Clutches Type 4HP
4H-P muti-disc pilot mount clutches are part of the Air Champ Series. Nexen's 4H-P provides big torque in a small package.
- 4HP Series, Multiple Disc Clutches
The Nexen 4H-P is a direct replacement for the Matrix 4H and 54H-P range of Multi Disc clutches
Nexen Pilot Mount Multi Disc Clutches Type 4HP
Multi Disc Clutch With Pilot Mount Output
Available in 7 sizes with static torque up to 10000 in-lbs at 80 psi, bores up to 2.375 in. Maximum RPM dependent on torque/air pressure setting. The pilot accepts pulleys, sprockets, and Nexen couplings. More durable, and higher RPM than the LSCC clutch series.
Standard Sizes:
- 7 sizes: 4H30P; 4H35P; 4H40P; 4H45P; 4H50P; 4H60P; 4H70P
FEATURES:
High torque
Self-adjusting for friction wear
Easy facing replacement
Air engaged
Straight bore
Shaft mounted
