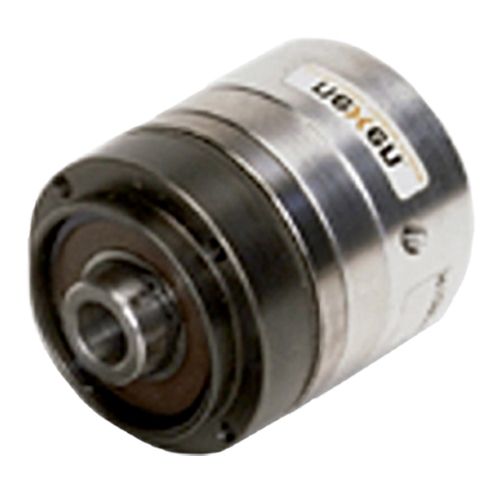

Nexen Micro Friction Clutch
The Micro Friction Clutch provides high performance in a small package.
Air engaged
Shaft Mount
Friction Clutch
Nexen Micro Friction Clutch
Light Duty Air Cooled Clutches For Narrow Range Tension Control Applications.
Specifications:
Static Torque capacity up to 18 In. Lbs. @ 80 psi
Maximum Operating Speed up to 3600 rpm
Transmitted Horsepower values from 0.06 to 0.50
Thermal Horsepower rating of 0.06 @ 1800 rpm
Heat Sink capacity of 1900 Ft. Lbs. This Pilot Mount clutch mounts easily and comes with:
0.375 inch Standard Bore
5 inch hose with .190-32 by .125 NPT included.
