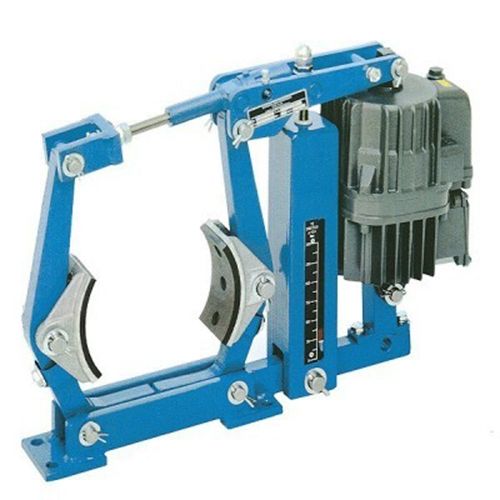

Sibre Imperial Drum Brake TEC
Industrial Clutch Parts Ltd. supplies a complete range of Sibre electrohydraulic drum brakes. Developed using state of the art industrial brake technology according to DIN 15435.
Sibre TEc is a spring applied, thruster released drum brake. Used in both underground and above ground applications, as well as in wind turbine plants. It is a versatile drum brake, ideal for general industrial applications such as steelworks, material handling, cranes, and conveyors.
- Torque range: 245 - 8460 Nm
- Friction coefficient: 0.4 µ
- Thruster size: Ed 23/5c - Ed 301/6c
Sibre Imperial Drum Brake TEc
Sibre drum brakes generate constant brake torques for general industrial applications. Developed using state of the art industrial brake technology according to DIN 15435.
Sibre TEc units are manufactured for dust-laden or high vibration situations. The solid brake arms and base plate design results in low deflection for maximum efficiency and performance operations. The aluminum brake shoes with steel bushes and asbestos-free linings (riveted and/or bonded) provide reliable and long-lasting performance.
An optional auto wear compensator (AWC) device is used to compensate for the wear of brake linings. With the correct adjustment, the wear compensator will maintain an almost constant reserve stroke and offer a long life service for the drum brake.
- Optimizes lever geometry for maximum braking forces.
- Brake shoe clamping springs.
- Stainless pivot pins with bronze bushes.
- Lever synchronization linkage - unique feature eliminates the need to adjust shoe air gap.
|Industry Applications||Steel Works, Material Handling, Cranes, Conveyors, Wind Turbine Plants|
|Actuation Method||Electro Hydraulic|
|Compares With||Pintsch Bubenzer|
|Torque Rating||245 - 8460 Nm|
