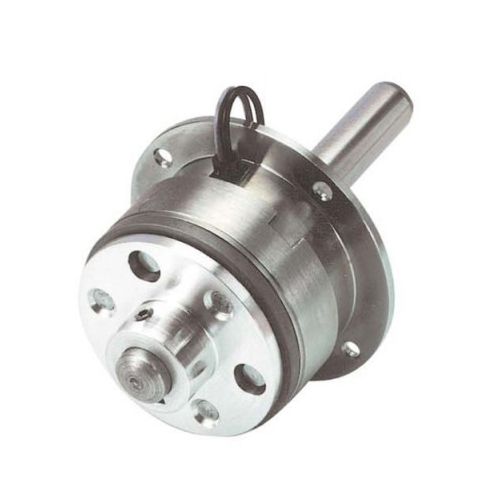

Simplatroll Magneta Miniature Brakes
Industrial Clutch Parts Ltd. offers a wide range of Simplatroll replacement magneta miniature brakes. Available in standard sizes, covering a range of torques. Often referred to by Lenze and Intorq brand names.
Miniature brakes offer very fast operating times, with zero residual torque when disengaged. Virtually maintenance-free with no running-in required.
- Electrical supply: 24 VDC or 205 VDC coils
- Torque: 0.3 - 3.6 Nm
- Power: 6 - 10 W
Simplatroll Replacement Magneta Miniature Brakes
Miniature brake units transmit torque through dry running friction material. Available in standard sizes, covering a torque range from 0.3 to 3.6 Nm.
Miniature electromagnetic brakes transmit torque by friction during dry running under voltage. When switched off, the release is free of residual torque via a tensioned annular spring. They are used wherever mass in motion must be slowed or accelerated quickly.
D.C. voltage is applied to the coil to create a magnetic field which passes from the stator across the air gap and attracts the armature plate. The armature plate moves axially away from the flanged hub by means of pre-stressed spring to generate the rated torque. On removal of the supply, the magnetic field collapses and the spring pulls back the armature leaving the brake free of residual torque.
