Magneta Miniature Clutches - Bearing Mounted
Industrial Clutch Parts Ltd. offers a wide range of Simplatroll magenta miniature clutches. Available in standard sizes, covering a range of torques. Often referred to by Lenze and Intorq brand names.
Bearing mounted miniature clutches offer high torque capacity, with zero residual torque when disengaged. Virtually maintenance-free with no running-in required.
- Torque: 0.3 - 3.6 Nm
- Max. speed: 1500 r/min

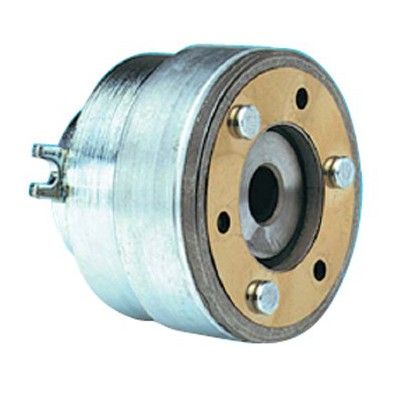

Simplatroll Magneta Miniature Clutches - Bearing Mounted 14.100
Bearing mounted clutches can be readily assembled on shafts without the need of mounting surfaces. The stator should be prevented from rotating by a loose-fitting pin. The magnetic field generated by the coil pulls the armature plate across the air gap. Axial movement is achieved by means of a pre-stressed spring which also transmits the torque generated at the friction surface.
Magneta miniature clutches offer high torque capacity, speeds up to 10,000 r/min, and very fast operating times. Bearing mounted coil provides easy installation and mounting. No running-in is required to ensure a quick and efficient service.
Armature type 1: for in-line shaft drives but observe the necessary shaft alignment limit.
Armature type 3: mounted onto pulleys, gears or sprockets which must in turn be bearing supported from the shaft.
