Magneta Miniature Clutches - Flange Mounted
Industrial Clutch Parts Ltd. offers a wide range of Simplatroll magenta miniature clutches. Available in standard sizes, covering a range of torques. Often referred to by Lenze and Intorq brand names.
Flange mounted miniature clutches offer very fast operating times, with zero residual torque when disengaged. Virtually maintenance-free with no running-in required.
- Torque: 0.6 - 3.6 Nm
- Max. speed: 10,000 r/min

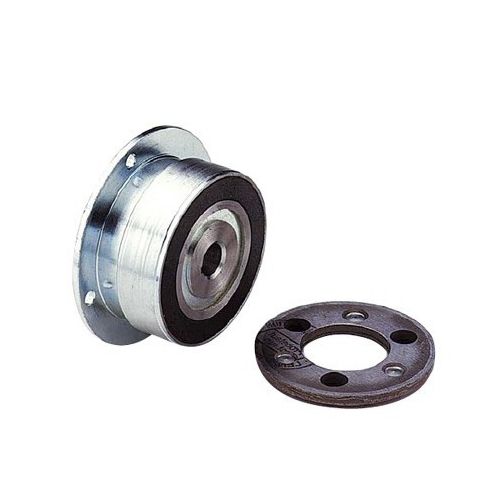

Simplatroll Magneta Miniature Clutches - Flange Mounted Type 14.100
Flange mounted miniature clutches comprise of three parts, the stator, the rotor, and the armature. The assembly is axially compact and suits high speed running. The coil is supplied with D.C. voltage generating a magnetic field which passes through air gaps to the rotor and then pulls in the armature plate.
The new and improved design offers 50% torque increase, speeds up to 10,000 r/min, and very fast operating times. It is stationary in-field and maintenance-free. No running-in is required to ensure a quick and efficient service.
Armature movement is achieved by the backlash-free spring. If the current supply is interrupted the magnetic field collapses and the spring pulls back the armature plate leaving no residual torque.
Armature type 1: for in-line shaft drives but observe the necessary shaft alignment limit.
Armature type 3: mounted onto pulleys, gears or sprockets which must in turn be bearing supported from the shaft.
