Pilotless Over-the-Shaft PTO Clutch
Industrial Clutch Parts Ltd. supplies a complete range of WPT pilotless over-the-shaft (OTS) power take-offs. Engineered to meet the most demanding diesel engine applications.
The design eliminates the pilot bearing while increasing side load capacity over competitive units. Best suited for in-line or sideload applications.
- Actuation methods: Pneumatic or Hydraulic
- Max. torque: 2400 - 3770 @ 14 bar
- Max. speed: 2300 - 2500 r/min

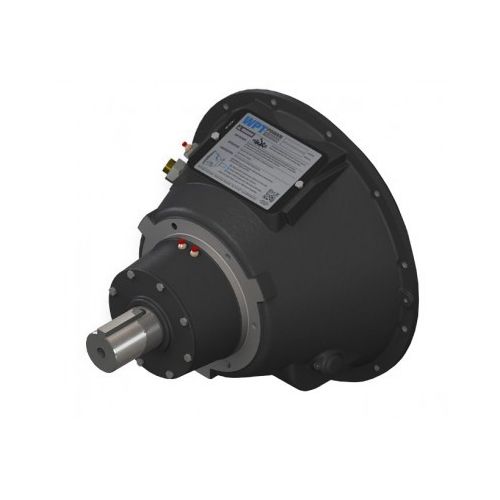

WPT Pilotless Over-The-Shaft PTO Clutch - with Side Oil / Air Inlet
WPT pilotless OTS power take-offs will increase machine uptime, improve engine life, and simplifying installation time. This design eliminates the pilot bearing while increasing side load capacity over competitive units.
The self-adjusting clutch has no direct loading to the engine crankshaft which increases the life of engine bearings. Valuable time is saved due to no pilot bearing alignment required during assembly. The dual spherical roller main bearing design increases side load capacity.
