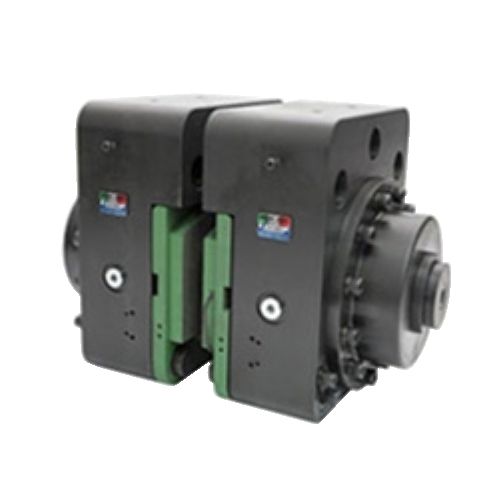

Coremo Spring Applied Hydraulic Brake - ID 2000 N

Brand: Coremo
Code: A3148

Industrial Clutch Parts Ltd. supplies a complete range of Coremo direct hydraulic brakes. Available in both oil-immersed and spring-applied operation methods.

Coremo ID 2000 N is a spring-applied hydraulic failsafe brake. Designed to generate a braking force via the action of cup springs compressed inside the thruster body. Coremo ID failsafe brakes are used for emergency stopping or holding and parking operations.

  • Braking Force: 116,000 N
  • Max. Pressure: 200 bar
  • Release Pressure: 200 bar
Out of stock

For further information, please contact us at:

Coremo Spring Applied Hydraulic Brake - ID 2000 N

Coremo hydraulic spring-applied brakes provide fast response times and reliable operations. Coremo ID 2000 N acts as a failsafe brake used for emergency parking and holding. Ideal for highly dynamic stops at a very competitive price level. Industries include seaports and marine applications, lifting systems, conveyors, mining and oil.

Coremo ID spring-applied brakes withstand the stresses produced during dynamic braking. ID 2000 N generates a braking force up to 116,000 N, the steel bodies are calculated to support pressures of over 100 bar.

ID spring-applied brakes are complete with wear indicator and inductive ON/OFF positioning sensor to indicate opening and closure. The lining pads have been designed to meet the relevant European standards on safety and toxic substances. The brake is easily maintained and performs without removing the brake from its mounting location. The high-quality friction materials and the protection treatment allow the brake to work at its best without risk of corrosion even in an aggressive environment.

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Brake
Brand Coremo
Industry Applications Mining, Marine, Drilling, Conveyors
Actuation Method Hydraulic
Actuation Type Passive
Brake Type Spring Applied
Compares With Svendborg, Twiflex
Friction Material Organic
Max. Braking Force 116,000 N
Max. Wear Of Pad (Organic) 18 mm
Max. Working Pressure 200 bar
Operating Temperature -40°C to +200°C
Overall Dimension 384 x 270 x 230 mm
