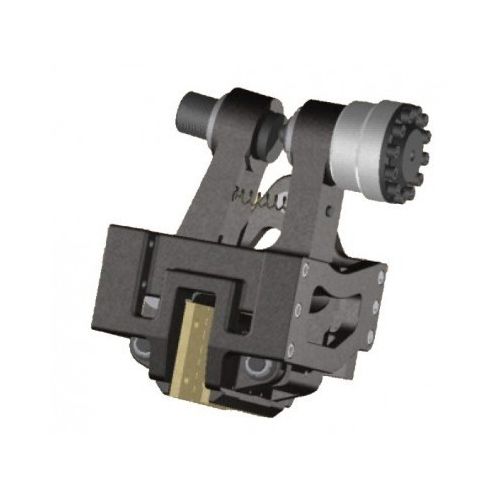

ICP Hydraulically Applied Caliper Brakes

Brand: ICP

Code: ICP Hydraulically Applied Caliper Brake

Industrial Clutch Parts Ltd. is pleased to introduce the new and expanded range of hydraulic applied caliper brakes.

Used as fail-safe brakes for a vast majority of industrial applications. Designed using the lever principle to generate a clamping force, which is applied to the brake disc in proportion to the oil pressure.

Braking Force: 7250 - 70500 N
Disc Thickness: 12.7 - 40 mm

Out of stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ICP Hydraulically Applied Caliper Brake Available Options

Grouped product items
Product Model	Description
051050401	ICP Hydraulically Applied Caliper Brake Type CBH5/12	ICP Hydraulically Applied Caliper Brake Type CBH5/12 Braking Force: 7250N Disc Thickness: 12.7mm	View Details
051060401	ICP Hydraulically Applied Caliper Brake Type CBH6/12	ICP Hydraulically Applied Caliper Brake Type CBH6/12 Braking Force: 17850N Disc Thickness: 12.7mm	View Details
051070401	ICP Hydraulically Applied Caliper Brake Type CBH7/12	ICP Hydraulically Applied Caliper Brake Type CBH7/12 Braking Force: 16250N Disc Thickness: 12.7mm	View Details
051080401	ICP Hydraulically Applied Caliper Brake Type CBH8/12	ICP Hydraulically Applied Caliper Brake Type CBH8/12 Braking Force: 16250N Disc Thickness: 12.7mm	View Details
051090401	ICP Hydraulically Applied Caliper Brake Type CBH9/25	ICP Hydraulically Applied Caliper Brake Type CBH9/25 Replaces Twiflex GMRH Braking Force: 48800N Disc Thickness: 25.4mm	View Details
051100401	ICP Hydraulically Applied Caliper Brake Type CBH10/25	ICP Hydraulically Applied Caliper Brake Type CBH10/25 Braking Force: 48800N Disc Thickness: 25.4mm	View Details
051091401	ICP Hydraulically Applied Caliper Brake Type CBH91/25	ICP Hydraulically Applied Caliper Brake Type CBH91/25 Braking Force: 70500N Disc Thickness: 25.4mm	View Details
051101401	ICP Hydraulically Applied Caliper Brake Type CBH101/25	ICP Hydraulically Applied Caliper Brake Type CBH101/25 Braking Force: 70500N Disc Thickness: 25.4mm	View Details
051050402	ICP Hydraulically Applied Caliper Brake Type CBH5/25	ICP Hydraulically Applied Caliper Brake Type CBH5/25 Braking Force: 7250N Disc Thickness: 25.4mm	View Details
051060402	ICP Hydraulically Applied Caliper Brake Type CBH6/25	ICP Hydraulically Applied Caliper Brake Type CBH6/25 Braking Force: 17850N Disc Thickness: 25.4mm	View Details
051091402	ICP Hydraulically Applied Caliper Brake Type CBH91/30	ICP Hydraulically Applied Caliper Brake Type CBH91/30 Braking Force: 70500N Disc Thickness: 30mm	View Details
051091403	ICP Hydraulically Applied Caliper Brake Type CBH91/40	ICP Hydraulically Applied Caliper Brake Type CBH91/40 Braking Force: 70500N Disc Thickness: 40mm	View Details
051090402	ICP Hydraulically Applied Caliper Brake Type CBH9/30	ICP Hydraulically Applied Caliper Brake Type CBH9/30 Replaces Twiflex GMRH Braking Force: 48800N Disc Thickness: 30mm	View Details
051090403	ICP Hydraulically Applied Caliper Brake Type CBH9/40	ICP Hydraulically Applied Caliper Brake Type CBH9/40 Replaces Twiflex GMRH Braking Force: 48800N Disc Thickness: 30mm	View Details
051100402	ICP Hydraulically Applied Caliper Brake Type CBH10/30	ICP Hydraulically Applied Caliper Brake Type CBH10/30 Braking Force: 48800N Disc Thickness: 30mm	View Details
051100403	ICP Hydraulically Applied Caliper Brake Type CBH10/40	ICP Hydraulically Applied Caliper Brake Type CBH10/40 Braking Force: 48800N Disc Thickness: 40mm	View Details
051101402	ICP Hydraulically Applied Caliper Brake Type CBH101/30	ICP Hydraulically Applied Caliper Brake Type CBH101/30 Braking Force: 70500N Disc Thickness: 30mm	View Details
051101403	ICP Hydraulically Applied Caliper Brake Type CBH101/40	ICP Hydraulically Applied Caliper Brake Type CBH101/40 Braking Force: 70500N Disc Thickness: 40mm	View Details
051070402	ICP Hydraulically Applied Caliper Brake Type CBH7/25	ICP Hydraulically Applied Caliper Brake Type CBH7/25.4 Braking Force: 16250N Disc Thickness: 25.4mm	View Details
051080402	ICP Hydraulically Applied Caliper Brake Type CBH8/25	ICP Hydraulically Applied Caliper Brake Type CBH8/25 Braking Force: 16250N Disc Thickness: 25.4mm	View Details

ICP Hydraulically Applied Caliper Brakes

Industrial Clutch Parts is pleased to introduce the new and expanded range of caliper brakes with innovative solutions for every requirement.

Decades of experience combined with continuous feedback with many different users and a careful analysis of their demands has allowed us to develop a range of products that revolutionises the caliper brake concept with the introduction of many improvements and innovative technical solutions.

Request A Quote

First Name

Last Name

Company Name

Email

Phone Number

Message

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Actuation Method

Actuation Type

Friction Material

Mating Surface

More Information

Product	Brake
Brand	ICP
Actuation Method	Hydraulic
Actuation Type	Active
Brake Type	Caliper
Compares With	Twiflex
Friction Material	Organic
Mating Surface	Cast Iron
