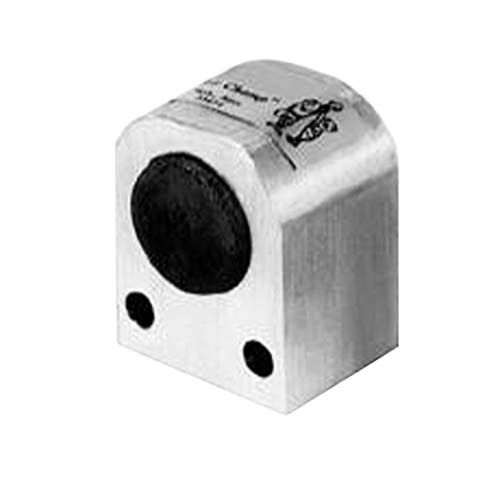

Nexen Air Engaged 625 Single Puck Brake

More Views

Nexen Air Engaged 625 Single Puck Brake

Call For Availability

Code: 837100
Brand: Nexen

Nexen Air Engaged 625 Single Puck Brake

Air Engaged Caliper Brakes

  • “O” ring sealed

  • Simple design

  • Light-duty tension control applications.

PDF Download Download
84 100 36
Description

Details

Nexen Air Engaged 625 Single Puck Brake

These light duty drag brakes are perfect for custom applications where space is limited and which do not require a full caliper.

Characteristics:

  • Dynamic torque factor (F) at 6 bar: 30N

  • Axial thrust at 6 bar: 135N

  • Offset (d): 0.01 m

  • Dynamic Torque on a 0.254m (10") diameter disc: 3.5 Nm

Additional Information

Additional Information

Product Type Brake
Brand Nexen
PDF Catalogue PDF Download Download
Actuation Method Pneumatic
Ambient Temperature 32 - 150 °F
Brake Type Caliper
Brake Disc Thickness Unlimited
Max. Working Pressure 80 psi
Torque Rating 32 inlbs with a 10 in. Disc
OEM Numbers
