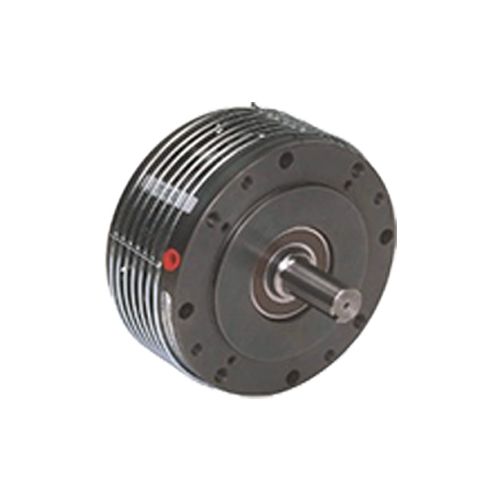

Nexen Air Engaged Brake Type MBU

More Views

Nexen Air Engaged Brake Type MBU

Call For Availability

Code: Nexen Air Engaged Brake Type MBU
Brand: Nexen

Nexen Air Engaged Brake Type MBU

Nexen's MBU Model Series provides high torque and their open design offers the highest thermal performance.

MBU Flange Mounted Module Brake Models:

  • 625

  • 875

  • 1125

  • 1375

PDF Download Download
81 100 40
Description

Details

Nexen Air Engaged Brake Type MBU

The MBU's have combined double and single row output shaft bearings providing the the highest overhung load capability.  MBU Modular Brake Units mount directly to NEMA C-faced motors or brakes.

SPECIFICATIONS:

  • 4 sizes: 625; 875; 1125; 1375

  • Static torque at 6 bar: 60Nm(625 & 875); 123Nm(1125); 195Nm(1375)

  • Bores: 0.625"; 0.875"; 1.125"; 1.375"

FEATURES:

  • Flange mounting between AC motor and gearbox

  • High cooling capacity

  • Self adjusting for friction wear

  • Easy facing replacement

  • Standard and low coefficient facings

  • An optional drip-proof kit can allow it's use in wet or very dirty environments.

Additional Information

Additional Information

Product Type Brake
Brand Nexen
PDF Catalogue PDF Download Download
Industry Applications Dynamic braking, Cyclic stops, Tension control & Holding
Actuation Method Pneumatic
Bore Size 0.625"; 0.875"; 1.125"; 1.375"
Compares With Horton
Torque Rating Static torque at 6 bar: 60Nm(625 & 875); 123Nm(1125); 195Nm(1375)
