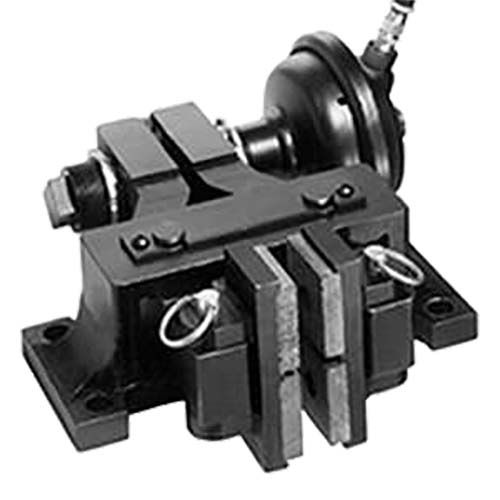

Nexen Air Engaged Caliper Type BD

Nexen's Air Engaged BD model can multiply stopping power by installing more than one caliper brake per disc.

PDF Download Download
99 100 26


Nexen Air Engaged Caliper Type BD

Caliper for disc brake


  • Air actuated actuators to mount on either side of the brake.

  • Air connections can be rotated 360 degrees around actuator axis.

  • Shoes are mounted with detent pins for quick replacement.

  • SPC shoes fit on BD Model Caliper Brakes for longer life and higher peak input rate.

  • All pivot points have life lubricated bearings.


  • Static torque factor (F) at 6 bar: 8520N(STD facings), 5110N(Loco facings)

  • Minimum disc diameter : 305mm (12")

  • Offset (d): 0.035m

  • Static Torque = (R - d) * F Static Torque at 6 bar on a 0.610m (24")

  • Diameter disc: 2300Nm

  • Disc Thickness: 12.5mm

  • Caliper spacing fits 0.500 inch wide discs

  • Disc Speeds up to 3200 rpm with 14 inch discs.


  • Controlled deceleration

  • Dynamic stopping

  • Tension control

  • Holding

Additional Information

Additional Information

Product Type Brake
Brand Nexen
PDF Catalogue PDF Download Download
Actuation Method Pneumatic
Actuation Type Active
Ambient Temperature 32 - 150 °F
Brake Type Caliper
Brake Disc Thickness 12.5 mm
Compares With Horton
Max. Working Pressure 80 psi
Torque Rating 19000 inlbs With a 24 in. Disc
