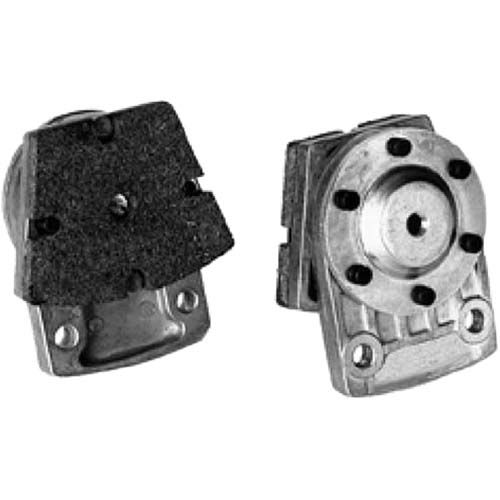

Nexen Air Engaged Caliper Type TC

Brand: Nexen
Code: Nexen Air Engaged Caliper Type TC

Nexen Air Engaged Caliper Type TC

TC models:

  • 3 coefficients of friction facings.

  • Diaphragm actuated

  • Spring returned brake for tension control or low cyclic duty applications.

Out of stock

For further information, please contact us at:

93 100 39

Nexen Air Engaged Caliper Type TC

Caliper for Disc Brake

Characteristics:

  • Static torque factor (F) at 6 bar: 400N(Hico facings), 310N(Std facings), 180N(Loco facings)

  • Axial thrust at 6 bar: 880N

  • Minimum disc diameter : 152mm (6")

  • Offset (d): 0.025m

  • Static Torque = (R-d) * F Static Torque at 6 bar on a 0.406m (16")

  • Diameter disc: 103Nm (Std facings)

APPLICATIONS:

  • Controlled deceleration

  • Dynamic stopping

  • Tension control

  • Holding

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Brake
Brand Nexen
Actuation Method Pneumatic
Brake Type Caliper
Compares With Horton
Max. Working Pressure 80psi
Torque Rating 90lbf @ 80psi
Weight Range 1.3 - 1.5 lbs
