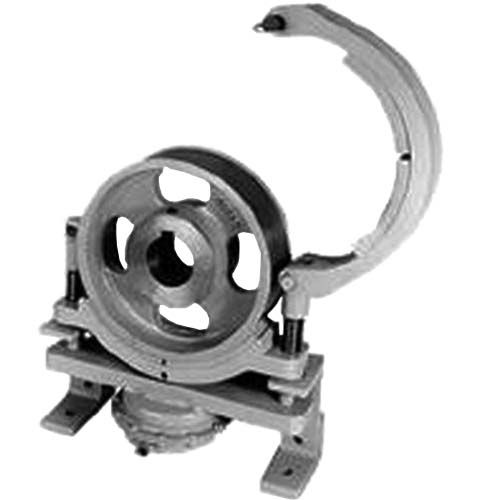

Nexen Air Engaged K-Brake Hinge Top

Brand: Nexen
Code: Nexen Air Engaged K-Brake Hinge Top

Nexen Air Engaged K-Brake Hinge Top

Nexen's Air Engaged Hinge Top Drum Brakes are ideal for high torque slow speed control applications.

Hinge Top Drum Brakes Models:

  • 4K

  • 8K

  • 12K

Out of stock

For further information, please contact us at:

93 100 21

Nexen Air Engaged K-Brake Hinge Top

The hinged design enables for a removable brake drums. Each model allows you to customize your drum bore. Air actuated for accurate, economical operation. Long-wearing friction linings.

Characteristics:

  • 4, 8 and 12-inch Drum sizes available

  • Static torque at 6 bar: 89Nm (4K, Loco); 150Nm (4K, Std); 174Nm (8K, Loco); 290Nm (8K, Std); 276Nm (12K, Loco); 460Nm (12K, Std)

  • Drum diameters: 101.6mm(4"), 203.2mm(8"), 304.8mm(12")

  • Max. speed: 5500 RPM

  • Bores: 0-100mm

  • Thermal Horsepower rating up to 3.000 HPt

FEATURES:

  • High cooling capacity.

  • High friction work capacity.

  • Self adjusting for friction wear.

  • Standard or Low coeffecient facings.

  • Shaft Mounted Design.

  • Long-wearing friction linings.

  • Top side opens for easy drum or roll exchange supplied with self adjusting support bracket.



Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Brake
Brand Nexen
Industry Applications Dynamic braking, Cyclic stops, Tension control & Holding
Actuation Method Pneumatic
Compares With Horton
Bore Size 0-100mm
Max. RPM 5500
Torque Rating Static Torque capacity up to 3750 In. Lbs. @ 80 psi
Outside Diameter 101.6mm(4"), 203.2mm(8"), 304.8mm(12")
