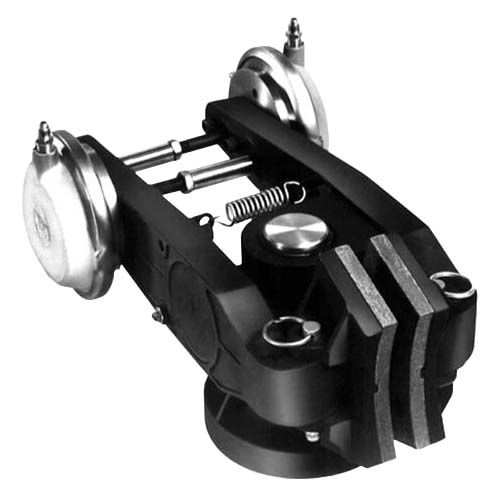

Nexen Air Engaged Single Post Caliper Type SPC-A

Brand: Nexen
Code: Nexen Air Engaged Single Post Caliper Type SPC-A

Nexen Air Engaged Single Post Caliper Type SPC-A

SPC Model Air Actuated Caliper Brakes.



Out of stock

For further information, please contact us at:

99 100 14

Nexen Air Engaged Single Post Caliper Type SPC-A.

Caliper for disc brake.

Features:

  • Air Actuation.

  • Static torque capability up to 50,000 In. Lbs.

  • Brake actuator is moveable to permit a change in mechanical advantage which varies the torque range.

  • All models may be quickly and easily converted from one actuating system to another.

  • Arced brake shoes with quick removable pin mounting.

  • Pedestal style base is easily mounted in a small area.

  • Optional discs available from 16 to 24 inch diameter.

  • Disc speeds up to 2800rpm with 16 inch disc.

  • QD bushing compatible, for shaft sizes up to 3.875 inches.

CHARACTERISTICS:

  • Modular design: order calliper and 1 or 2 actuators separately

  • Actuator moveable to permit change in mechanical advantage

  • Arced brake shoes with quick removable pin mounting

  • Pedestal style base is easy to install on a small area

  • OPTIONS: LOCO friction facings (static torque 60% of catalogue value) 1.000" disc thickness

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Brake
Brand Nexen
Actuation Method Pneumatic
Brake Type Caliper
Compares With Horton
Brake Disc Diameter 16 - 24"
Max. RPM 2800
Torque Rating Up to 50,000 In. Lbs.
Weight Range 77 - 83lbs
