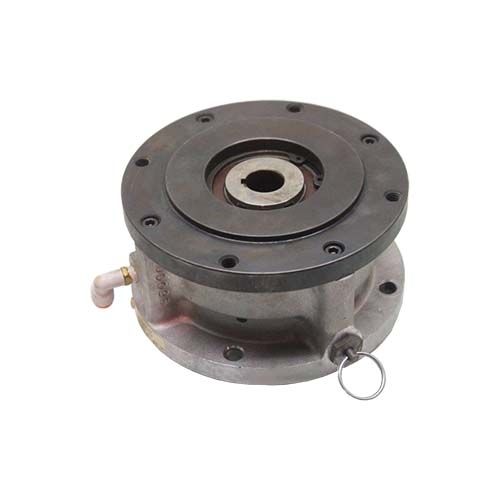

Nexen Spring Engaged Brake Module Type SE

Brand: Nexen
Code: Nexen Spring Engaged Brake Module Type SE

Nexen Spring Engaged Brake Module Type SE

The Module Type SE is a Spring Engaged, NEMA C-Face, Shaft, Flange or Foot Mounted Brake with Manual Release.

  • Spring Engaged Friction Brake Model: SE (16)


Out of stock

For further information, please contact us at:

94 100 18

Nexen Spring Engaged Brake Module Type SE

Spring-engaged brakes provide protection to equipment when fast, dependable stops are required for non-cyclic applications. Restrictor valve controls exhaust air during engagement, ensuring a smooth stop. Three moving parts ensure durability and dependability.

Characteristics:

  • NEMA C-face: 56C, 143TC, 145TC, 182TC, 184TC, 213TC, 215TC, 254UC, 256UC

  • Static torque at 0 bar: 100InLb to 2000 InLb (11.3Nm to 226Nm)

  • Minimum release pressure: 30-50psi

FEATURES:

  • Fast response

  • Versatile mounting

  • Manual release

  • Easy facing replacement

  • Mounting flexibility

  • NEMA C-Flange mount or shaft mount capability.

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Brake
Brand Nexen
Industry Applications Emergency stopping, Power-off holding, Dynamic stopping...
Actuation Method Pneumatic
Brake Type Spring Applied
Compares With Horton
Bore Size Up to 1.375"
Inertia 1.280-7.410 lb.in²
Max. RPM 1800
Min. Release Pressure 30 - 50 psi
Torque Rating Up to 1150 In. Lbs.
Weight Range 14-28lbs
