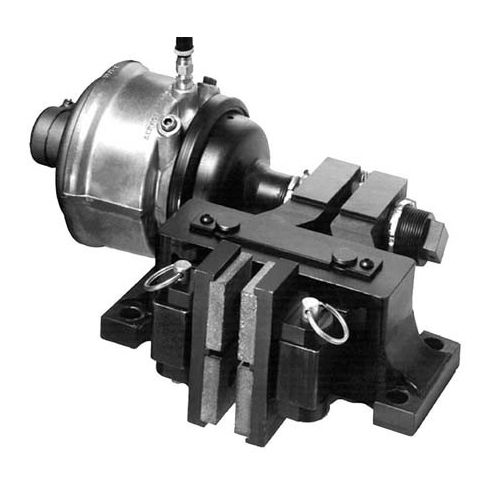

Nexen Spring Engaged Caliper Type BD

Brand: Nexen
Code: Nexen Spring Engaged Caliper Type BD

Nexen Spring Engaged Caliper Type BD



Out of stock

For further information, please contact us at:

93 100 19

Nexen Spring Engaged Caliper Type BD

Caliper for disc brake.

Features:

  • Static torque capacity up to 19,000 in.lbs.

  • Actuators mount on either side of the brake.

  • Air connections can be rotated 360 degrees around actuator axis.

  • All pivot points have life-lubricated bearings.

  • Optional discs from 12 to 24 inch diameters.

  • Disc speeds up to 3200 rpm with 14 inch discs.

Characteristics:

  • Static torque factor at 0 bar: 7940N (STD facings); 4760N (LOCO facings)

  • Minimum release pressure: 5bar

  • Minimum disc diameter : 305mm

  • Offset: 0.035m

  • Static Torque = (Disc radius - Offset) x static torque factor

  • Static Torque at 0 bar on a 0.610m (24")

  • Diameter disc: 2150Nm

  • Disc Thickness: 12.5mm



Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Brake
Brand Nexen
Industry Applications Emergency stopping, Controlled deceleration, Dynamic stopping, Tension control, Holding Linear brake...
Actuation Method Pneumatic
Brake Type Caliper
Compares With Horton
Torque Rating Up to 19,000 In.lbs.
