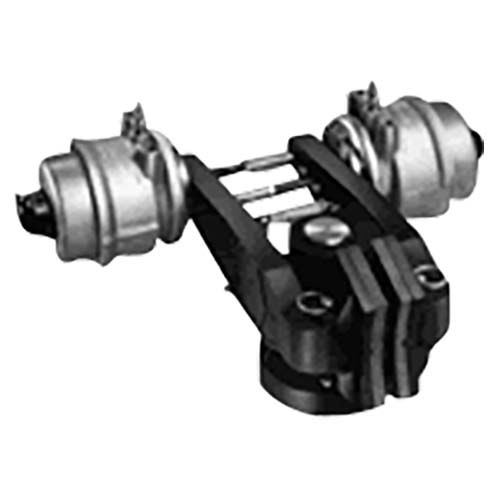

Nexen Spring Engaged Single Post Caliper Type SPC-S

More Views

Nexen Spring Engaged Single Post Caliper Type SPC-S

Call For Availability

Code: Nexen Spring Engaged Single Post Caliper Type SPC-S
Brand: Nexen

Nexen Spring Engaged Single Post Caliper Type SPC-S

SPC Model Spring Actuated Caliper Brakes

Caliper for disc brake.

PDF Download Download
80 100 16
Description

Details

Nexen Spring Engaged Single Post Caliper Type SPC-S

Spring Engaged Air Released Caliper Brakes

FEATURES:

  • Spring actuation

  • Static Torque capability up to 50,000 In. Lbs.

  • Brake actuator is moveable to permit a change in mechanical advantage which varies the torque range.

  • All models may be quickly and easily converted from one actuating system to another.

  • Optional discs available from 16 to 24 inch diameter

  • Modular design: order calliper and 1 or 2 actuators separately

  • Actuator moveable to permit change in mechanical advantage

  • Arced brake shoes with quick removable pin mounting

  • Pedestal style base is easy to install on a small area

Characteristics:

  • Static torque factor at 0 bar: 8430N; 12430N or 20860N

  • Offset: 0.037m

  • Static Torque = (Disc radius - Offset)*static torque factor

  • Static Torque at 0 bar: 85650 Nm on a 610 mm (24") disc

  • Minimum release pressure: 4.8bar

  • Work capacity: 3.32 MJ Peak input rate: 57.5 kW

  • Continuous cooling capacity: see disc specifications

  • Minimum disc diameter 305 mm ( 12")

  • Disc thickness: 12.7mm (0.500")

  • Discs compatible with shaft diameters up to 100 mm

OPTIONS:

  • LOCO friction facings (static torque 60% of catalogue value) 1.000" disc thickness
Additional Information

Additional Information

Product Type Brake
Brand Nexen
PDF Catalogue PDF Download Download
Actuation Method Pneumatic
Brake Type Caliper
Compares With Horton
Max. RPM 2800
Torque Rating Up to 50,000 In. Lbs.
