WPT Caliper Brakes

Brand: WPT
Code: WPT Caliper Brake

Industrial Clutch Parts Ltd. supplies a complete range of WPT caliper disc brakes. Ideal for use in drilling and work-over rigs, draw works, marine winches, and forestry applications.

WPT Power caliper disc brake is an air-applied, spring-released caliper disc brake system.

  • Disc diameter: 30'' - 60.5''
  • Torque rating: 20,800 - 67,400 Nm
  • Interchangeability: Kobelt
Out of stock

For further information, please contact us at:

95 100 40

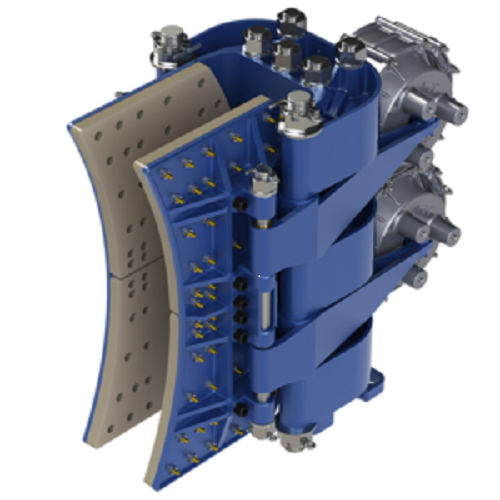

WPT Caliper Disc Brake

WPT caliper brakes are engineered to perform in the most adverse environments where real-world conditions can severely affect performance and reliability.

The rugged, low-maintenance, caliper design consists of a die-cast silicone bronze with high-quality stainless steel hardware. These calipers are lever operated and have adjustable clevises on the actuators to regulate the disc and shoe clearance.

The actuators are designed to use minimal air or hydraulic pressure when applying or releasing the brake. Technical design changes have been made to increase the torsional strength and durability of the caliper brakes. It comes standard with non-asbestos friction material and has semi-metallic pads available for higher torque applications. Balancing links are used to ensure even lining wear to reduce downtime and repair costs.

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Brake
Brand WPT
Industry Applications Energy, Marine, Forestry, Industrial...
Actuation Method Pneumatic
Actuation Type Active
Brake Type Caliper
Compares With Kobelt
Brake Disc Diameter 30" - 60.5"
Lining Area 1,290 - 2,677 cm2
Max. Clamping Force 141,500 - 213,600 N
Max. RPM 1100
Max. Wear Of Pad (Organic) 10 mm
Max. Working Pressure 7 bar
Torque Rating 20,800 - 67,400 Nm
