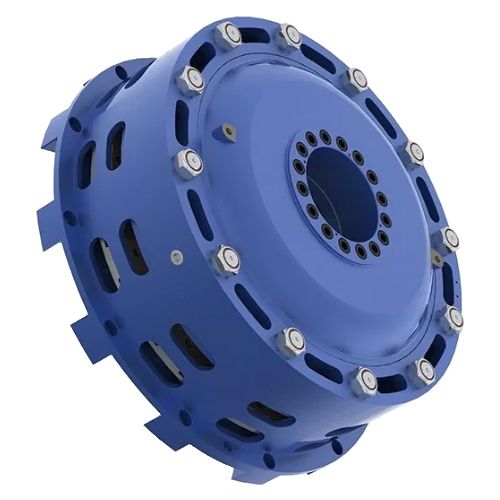

WPT Power Set Brakes

Brand: WPT
Code: WPT Power Set Brakes

Industrial Clutch Parts Ltd. supplies a complete range of WPT power set brakes. Specifically designed for heavy earthmoving equipment.

WPT power set brake is a spring-set, air released brake. Large friction surfaces provide this design the capacity to dissipate large thermal loads.

  • Static Torque: 2450 - 30,700 Nm
  • Pressure: 60 psi
  • Applications: Draglines, Rope Shovels
Out of stock

For further information, please contact us at:

94 100 21

WPT Power Set Brakes

WPT power set brakes utilise a simplistic pneumatic-piston pin-drive design. Manufactured to provide multiple torque capacities and release pressures.

The power set brake has been developed with large friction surface areas and non-asbestos lining materials for maximum heat dissipation, whilst working under extreme pressures. The large surface areas create minimal maintenance and zero adjustments for wear, providing greater efficiency and less downtime on your application.

Available in both pneumatically applied and spring-applied pneumatically-released configurations. This series of brakes will meet the heaviest loads and demands in the Mining industry. Typical applications include rope shovels and draglines.

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Brake
Brand WPT
Industry Applications Mining, Rope shovels & Draglines
Brake Type Spring Set
Pressure 60 psi
Torque Rating 2450 - 30,700 Nm
