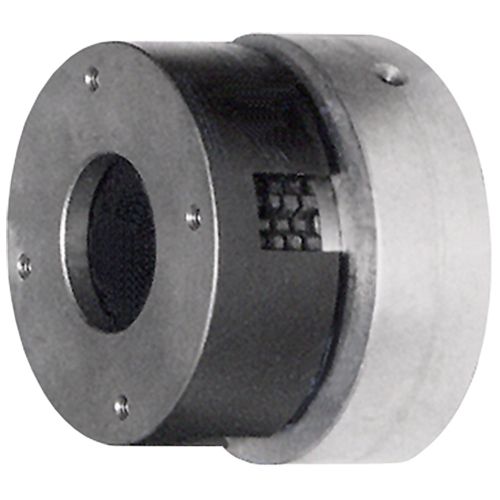

Nexen Flange Mounted Multi Disc Clutches Type 4H

More Views

Nexen Flange Mounted Multi Disc Clutches Type 4H

Call For Availability

Code: Nexen Flange Mounted Multi Disc Clutches Type 4H
Brand: Nexen

Nexen Flange Mounted Multi Disc Clutches Type 4H

Nexen's 4H muti-disc flange mounted clutches provide big torque in a small package.

  • 4H Series

  • Flange Mounted

  • Multi Disc Clutches

83 100 22
Description

Details

Nexen Flange Mounted Multi Disc Clutches Type 4H

Available in 7 sizes with static torque up to 10000 in-lbs at 80 psi and bore sizes up to 2.375 inches. The flange/drive shell of this clutch has no support bearing of its own so is supported by what is being driven or can be secured to the machine frame and used as a brake.

SPECIFICATIONS:

  • 7 sizes: 4H30; 4H35; 4H40; 4H45; 4H50; 4H60; 4H70

  • Torque: 85-1130Nm

  • Bores: 22-55mm

FEATURES:

  • High torque

  • Self adjusting for friction wear

  • Easy facing replacement

  • More durable, and higher RPM than the LSCC clutch series

Additional Information

Additional Information

Product Type Clutch
Brand Nexen
Actuation Method Pneumatic
Ambient Temperature 32 - 150 °F
Bore Size 22-55mm
Compares With Horton
Clutch Type Friction
Torque Rating 85-1130Nm @80psi
