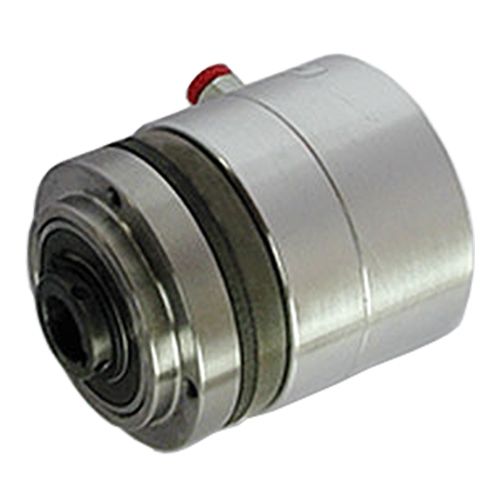

Nexen Friction Clutch Type B-275/16mm

Brand: Nexen
Code: 950706

Nexen Friction Clutch Type B-275/16mm

  • B-275 Shaft Mounted Clutches

  • Bantam Weight Model Friction Clutch


Out of stock

For further information, please contact us at:

93 100 33

Nexen Friction Clutch Type B-275/16mm

Nexen's B-275 is equipped with sealed, radial bearings and a multi-tooth splined hub.Tapped holes are provided for easy mounting in applications with pulleys, sprockets or gears.


  • Ultra Loco facings (6Nm at 6 bar)

  • Integral pulleys

  • Coupling adapters BW and B-275 have identical mounting dimensions, the BW can be recognized by the big washer at the back.

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Clutch
Brand Nexen
Industry Applications Connect/disconnect tension control...
Actuation Method Pneumatic
Ambient Temperature 0 - 66 C
Compares With Horton
Bore Size 16mm
Clutch Type Single Disc
Max. RPM 3600
Torque Rating Torque: 11 Nm
Length 90 mm
Outside Diameter 73.4 mm
