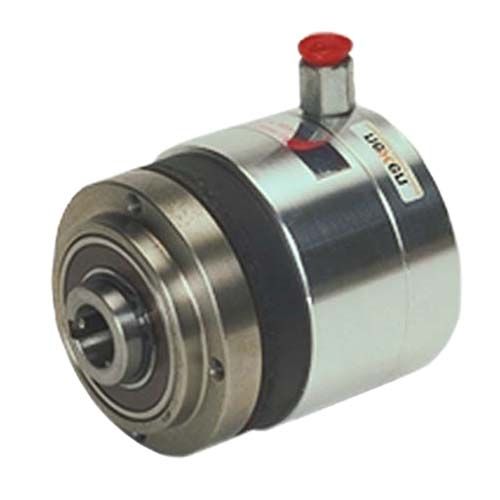

Nexen Sheave Mount Friction Clutch Type BW

Brand: Nexen
Code: 800004

Nexen Sheave Mount Friction Clutch Type BW

  • Friction Clutch Bantam Weight Model - BW

  • Sheave Mount - BW*0.625

Out of stock

For further information, please contact us at:

97 100 29

Nexen Sheave Mount Friction Clutch Type BW

The BW Friction Clutch provides excellent performance. The Nexen BW model is equipped with Thrust Bearings and a Single Key Splined Hub.


  • Air Engaged

  • Straight Bore

  • Shaft Mounted

  • Clutch With Open Bearings


  • Maximum Static Torque capacity: 100 In. Lbs. @ 80 psi

  • Maximum Operating Speed: 3600 rpm

  • Transmitted Horsepower values: 0.05 - 1.00

  • Thermal Horsepower rating: 0.13 @ 1800 rpm

  • Heat Sink capacity: 5650 Ft. Lb


Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Clutch
Brand Nexen
Industry Applications Connect/disconnect, tension control..
Actuation Method Pneumatic
Actuation Type Active
Ambient Temperature 32 - 150 °F
Compares With Horton
Bore Size 0.625 inches
Clutch Type Friction
Max. RPM 3600
Mounting Type Shaft
Torque Rating 100 inlbs
Length 90 mm
Outside Diameter 2.89 in.
