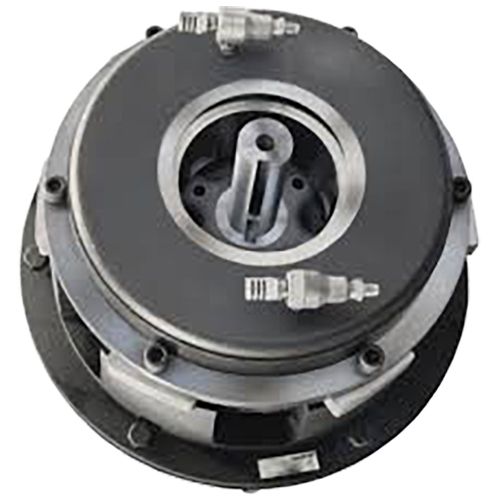

Nexen Friction Clutch Type QFE

Brand: Nexen
Code: Nexen Friction Clutch Type QFE

Nexen Friction Clutch Type QFE

The DFE and QFE Series of Clutches and Brakes are designed for applications requiring high torque and low inertia.

Nexen's Friction Clutch Model Series QFE have been manufactured as heavy duty clutch & brake elements.

  • Air Engaged

  • Quad Interface

  • Shaft Mounted

  • Straight Bore

Out of stock

For further information, please contact us at:

Nexen Friction Clutch Type QFE

With Nexen's QFE Heavy Duty Model Series, tough applications are made easy. The DFE and QFE Series of Clutches and Brakes are designed for applications requiring high torque and low inertia. The peak input rate may be the limiting factor in high inertia starts or stops, even though the Heat Sink Capacity is efficient.

When the QFE is used as a clutch it must be Shaft-End Mounted in a horizontal position. The housing is flange mounted to a bearing supported component (flywheel, gear, pulley). The Hub is keyed to the shaft. Air is supplied through a Rotary Air Union and flexible hoses.

SPECIFICATIONS:

  • Static Torque ratings: 24,600 to 302,000 in-lbs. torque at 80 psi

  • Maximum Operating Speed up to 1600 rpm

  • Thermal Horsepower values up to 14.7 @ 900 rpm

  • Bore range up to 6.500 inches

  • Quad Faced Elements have single disc assemblies

  • Rugged design ensures long product life

APPLICATIONS:

  • Heavy duty connect/disconnect Controlled acceleration

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Clutch
Brand Nexen
Industry Applications Heavy duty connect/disconnect, Controlled acceleration...
Actuation Method Pneumatic
Ambient Temperature 32 - 150 °F
Compares With Horton
Bore Size up to 6.500 inches
Clutch Type Friction
Max. RPM 1600
Torque Rating 24,600 to 302,000 in-lbs. torque at 80 psi.
