Nexen Friction Clutch Type FMCE/625
Brand:
Nexen
Code:
801489

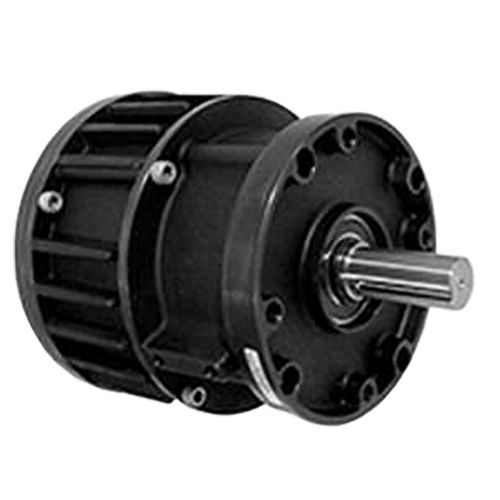

Nexen Friction Clutch Type FMCE/625
FMCE Flange Mounted Clutches are excellent in hostile and dirty environments where only a clutch is required.
- Fricition Clutch Model - FMCE-625*0.625
Out of stock
Nexen Friction Clutch Type FMCE/625
The FMCE/625 Model has been designed as an air engaged, NEMA C-Faced, flange mounted and enclosed clutch. The totally enclosed design functions perfectly in areas where dirt, dust, moisture or other contaminants interfere.
SPECIFICATIONS:
IEC or NEMA input and output flanges
Clutch torque: 10 to 220Nm at 5.5bar
Automatic facing wear compensation
High cooling capacity
Shaft diameter: 14 to 42mm; 0.625" to 1.375"
OPTIONS:
Mounting feet
Input shaft module
Nickel plating
| Product | Clutch |
|---|---|
| Brand | Nexen |
| Industry Applications | Cyclic start operation, torque control, controlled acceleration... |
| Actuation Method | Pneumatic |
| Actuation Type | Active |
| Compares With | Horton |
| Bore Size | 0.625 in. |
| Clutch Type | Friction |
| Max. RPM | 1800 |
| Mounting Type | Flange |
| Torque Rating | 10 to 220Nm at 5.5 bar |
