Nexen Friction Clutch Type FMCE/1375

Brand: Nexen
Code: 964410

Nexen Friction Clutch Type FMCE/1375

FMCE Flange Mounted Clutches are excellent in hostile, dirty environments where only a clutch is required.

  • Friction Clutch Model - FMCE-1375*1.375

Out of stock

For further information, please contact us at:

93 100 40

Nexen Friction Clutch Type FMCE/1375

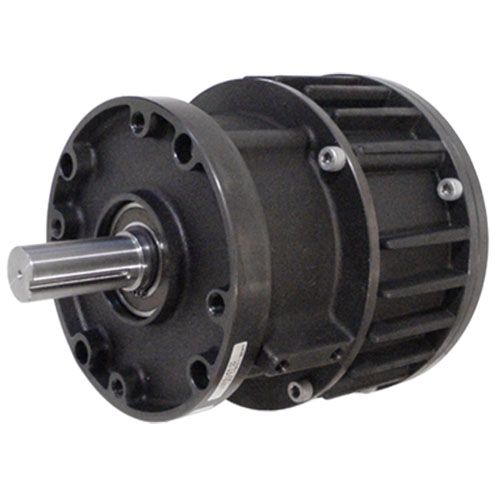

The FMCE/1375 Model has been designed as an air engaged, NEMA C-Faced, flange mounted and enclosed clutch. The totally enclosed design functions perfectly in areas where dirt, dust, moisture or other contaminants interfere.


  • IEC or NEMA input and output flanges

  • Clutch torque: 10 to 220Nm at 5.5bar

  • Automatic facing wear compensation

  • High cooling capacity

  • Shaft diameter: 14 to 42mm; 0.625" to 1.375"


  • Mounting feet

  • Input shaft module

  • Nickel plating

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Clutch
Brand Nexen
Industry Applications Cyclic start operation, torque control, controlled acceleration...
Actuation Method Pneumatic
Actuation Type Active
Compares With Horton
Bore Size 1.375 in
Clutch Type Friction
Max. RPM 1800
Mounting Type Flange
Torque Rating 10 to 220Nm at 5.5 bar
