Nexen Friction Clutch Type LSCC

More Views

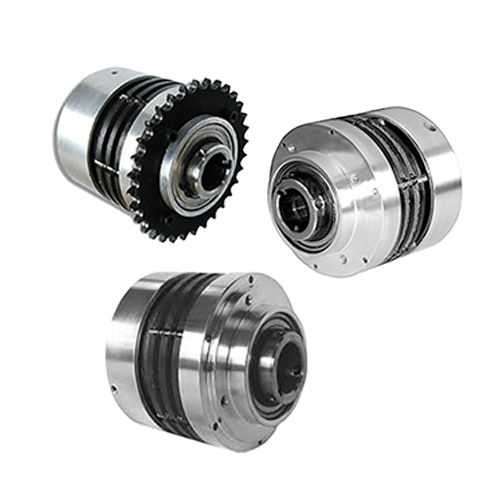

Nexen Friction Clutch Type LSCC

Call For Availability

Code: Nexen Friction Clutch Type LSCC
Brand: Nexen

Nexen Friction Clutch Type LSCC

Nexen’s LSCC air-engaged, straight-bore series of conveyor clutches offer high torque in a small package.

LSCC Straight Bore Conveyor Clutch Models:

  • LSCC 32 / 44 / 54

PDF Download Download
97 100 23
Description

Details

LSCC Straight Bore Conveyor Clutches

With a maximum torque rating of 452 Nm [4000 in-lb] and a bore range from 12 to 38 mm, these products can outperform the competition at a lower cost. Nexen’s conveyor lines comes standard with a pilot designed for easy sprocket mounting or can be configured for a variety of mounting application.

The multiple interfaces of the clutch engage under air pressure to drive sprockets, which are attached to the clutch drive flange. When air pressure is not directed to the clutch, springs keep the clutch interface separated for complete disengagement. No rotary air union is required.

SPECIFICATIONS:

  • Mounted on driven shaft

  • Clutch torque: 85 to 452Nm at 5.5bar

  • Automatic clutch facing wear compensation

  • Shaft diameter: 20 to 38mm; 0.625" to 1.500"



Additional Information

Additional Information

Product Type Clutch
PDF Catalogue PDF Download Download
Industry Applications High torque, low speed, connect/disconnect...
Actuation Method Pneumatic
Bore Size 12 to 38 mm
Compares With Horton
Clutch Type Friction
Torque Rating 85 to 452Nm at 5.5 bar
Inner Diameter 20 to 38mm; 0.625" to 1.500"
Outside Diameter 20 to 38mm; 0.625" to 1.500"
OEM Numbers
