Nexen Friction Clutch Type MDO

More Views

Nexen Friction Clutch Type MDO

Call For Availability

Code: Nexen Friction Clutch Type MDO
Brand: Nexen

Nexen Friction Clutch Type MDO

  • Modular Clutch Brake System Model - MDO

PDF Download Download
96 100 29
Description

Details

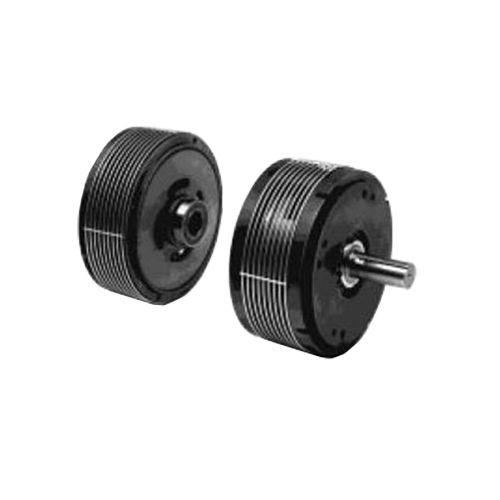

Nexen Friction Clutch Type MDO

MDO Modular Clutches are ideal for more demanding applications. They offer more torque and the open design offers higher thermal ratings than the FM series.

Features:

  • Flange mounted

  • NEMA C-face motors up to 10 HP.

  • Torque Control

  • Drip proof sealing kit is available for wet applications.

SPECIFICATIONS:

  • NEMA C flange compatible

  • Clutch torque: 47 to 130Nm at 5.5bar

  • Automatic facing wear compensation

  • High cooling capacity

  • Shaft diameter:  0.625" to 1.375"

Optional Foot Mount and Input Units are available for belt, chain, and coupling, drive applications.

Additional Information

Additional Information

Product Type Clutch
Brand Nexen
PDF Catalogue PDF Download Download
Industry Applications Soft start and stop, cyclic start/stop, torque control...
Actuation Method Pneumatic
Ambient Temperature 32 - 150 °F
Compares With Horton
Clutch Type Friction
Max. RPM 1800
Mounting Type Flange
Torque Rating 47 to 130Nm at 5.5 bar
Inner Diameter 0.625" to 1.375"
Outside Diameter 0.625" to 1.375"
OEM Numbers
