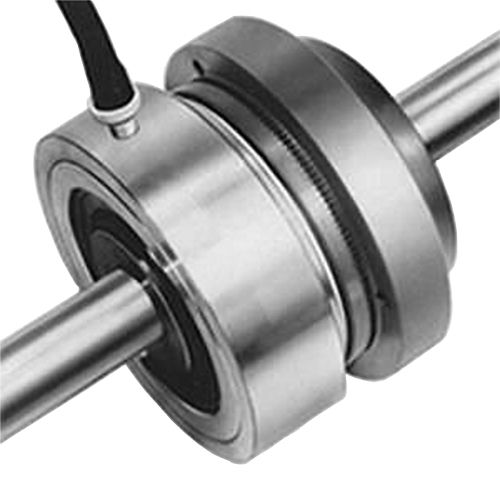

Nexen Tooth Clutch 5H70P

Brand: Nexen
Code: 910500

Pilot Mount Tooth Clutch Model - 5HP Series

Out of stock

For further information, please contact us at:

97 100 19

5HP Series - Air Engaged, Straight Bore, Pilot Mount, Tooth Clutches

Nexen's 5H-P Tooth Clutch provides positive engagements in random positions. The pilot mount design with tapped mounting holes allows the mounting of a pulley or  a sprocket.


  • Mounting on driving or driven shaft
  • Bearing mounted piston, air inlet does not rotate!
  • Torque proportional to control pressure
  • Sealed ball bearings


  • Connect/disconnect
  • Positive drive


  • Different bore sizes
  • Flexible couplings for in-line mounting

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product Clutch
Brand Nexen
Actuation Method Pneumatic
Ambient Temperature 32 - 150 °F
Compares With Horton
Bore Size 2.188 in.
Clutch Type Tooth
Max. RPM 2000
Torque Rating Maximum Static Clutch Torque: 17430 inlbs; Minimum Static Clutch Torque: 4360 inlbs
