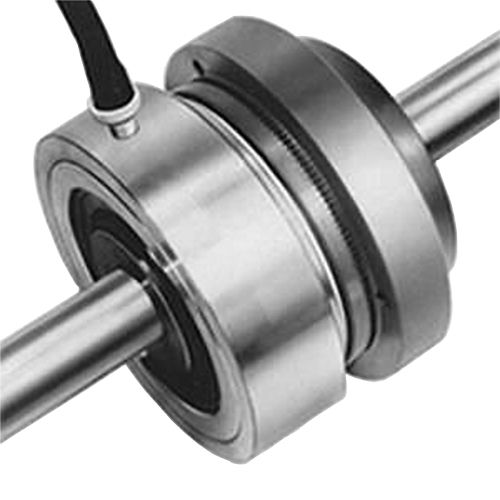

Nexen Tooth Clutch 5HP

More Views

Nexen Tooth Clutch 5HP

Call For Availability

Code: Nexen Tooth Clutch 5HP
Brand: Nexen

Nexen Tooth Clutch 5HP

The 5HP Series has been designed as a metric, air engaged, straight bore, pilot mount, enclosed tooth clutch.

  • 5HP Series

  • Pilot Mount

  • Tooth Clutch

PDF Download Download
86 100 40
Description

Details

Nexen Tooth Clutch 5HP

Nexen's 5H-P Tooth Clutch provides positive engagements in random positions. The pilot mount design with tapped mounting holes allows the mounting of a pulley or a sprocket.

FEATURES:

  • Mounting on driving or driven shaft

  • Bearing mounted piston, air inlet does not rotate!

  • Torque proportional to control pressure

  • Sealed ball bearings

APPLICATIONS:

  • Connect/disconnect

  • Positive drive

OPTIONS:

  • Different bore sizes

  • Flexible couplings for in-line mounting

Additional Information

Additional Information

Product Type Clutch
Brand Nexen
PDF Catalogue PDF Download Download
Actuation Method Pneumatic
Ambient Temperature 0 - 66 C
Bore Size up to 75 mm
Compares With Horton
Clutch Type Tooth
Max. RPM 4000
Torque Rating 4080 Nm @ 5.5 bar
OEM Numbers
