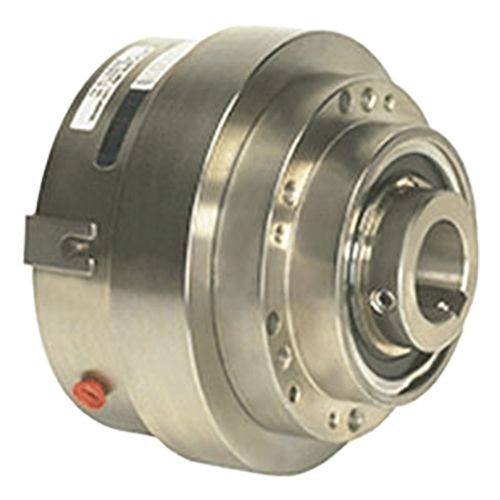

Nexen Tooth Clutch Type 5HPE

More Views

Nexen Tooth Clutch Type 5HPE

Call For Availability

Code: Nexen Tooth Clutch Type 5HPE
Brand: Nexen

Nexen Tooth Clutch Type 5HPE

Nexen's 5HPE Pilot Mount Tooth Clutch provides positive engagements in random positions.

  • Enclosed

  • Pilot Mount

  • Tooth Clutch

PDF Download Download
84 100 29
Description

Details

Nexen Tooth Clutch Type 5HPE

The 5HPE Series is an air engaged, straight bore, pilot mount, enclosed tooth clutch.

Nexen's 5HPE design accomadates for misalignment using single & double flexible couplings for in-line applications (6 Models offer design flexibility). Nexen's Pilot Mount is designed with tapped mounting holes and the Thru-Shaft mounting design uses a full-length keyway.

Nexen's 5HPE series forms the ability to mount a pulley, sprocket or gear on the clutch.

FEATURES:

  • Mounting on driving or driven shaft

  • Bearing mounted piston, air inlet does not rotate.

  • Torque proportional to control pressure.

  • Protected against dust and water projections.

  • Nickel plating finish.

  • Sealed, radial ball bearings.

  • 8.25 inch hose included.

  • Connect/disconnect Positive drive options.

  • Different bore sizes

  • Flexible couplings for in-line mounting.

Additional Information

Additional Information

Product Type Clutch
Brand Nexen
PDF Catalogue PDF Download Download
Actuation Method Pneumatic
Ambient Temperature 32 - 150 °F
Bore Size 22mm to 49mm
Compares With Horton
Clutch Type Tooth
Torque Rating up to 12,000 in-lbs. @ 80 psi.
OEM Numbers
