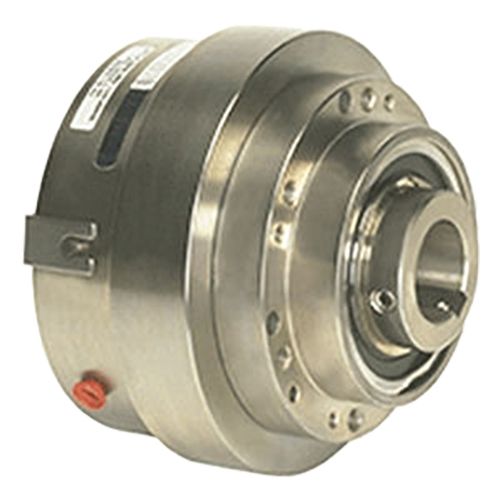

Nexen Tooth Clutch Type 5HP-SP-E

More Views

Nexen Tooth Clutch Type 5HP-SP-E

Call For Availability

Code: Nexen Tooth Clutch Type 5HP-SP-E
Brand: Nexen

Nexen Tooth Clutch Type 5HP-SP-E

A small, light weight and durabable clutch. The 5HP-SP-E provides positive engagement without slippage for accurate position and registration.

  • Enclosed

  • Pilot Mount

  • Tooth Clutches

81 100 26
Description

Details

Nexen Tooth Clutch Type 5HP-SP-E

Nexen's 5HP-SP-E Series is an air engaged, straight bore, pilot mount, positioning and enclosed tooth clutch.

Nexen's 5HP-SP-E pilot mount tooth clutches are the ideal solution for in-line zoned conveyor applications, as well as other applications that require bi-directional movement.

FEATURES:

  • Ball & detent synchronising mechanism

  • Mounting on driving or driven shaft

  • Bearing mounted piston, air inlet does not rotate.

  • Torque proportional to control pressure

  • Adjustable torque by varying air pressure.

  • Static air pressure operation.

  • Protected against dust and water projections

  • Nickel plating finish

  • 5 inch or 8.25 inch hose included.

OPTIONS:

  • Different bore sizes 2, 3, 4, 5, 6, 8-positions

  • Flexible couplings for in-line mounting

  • 3 Models offer design flexibility

Additional Information

Additional Information

Product Type Clutch
Brand Nexen
Industry Applications Connect/disconnect, positive drive...
Actuation Method Pneumatic
Ambient Temperature 32 - 150 °F
Bore Size 0.625 to 1.250 inches
Compares With Horton
Clutch Type Tooth
Torque Rating up to 3500 In-lbs @ 80 psi.
