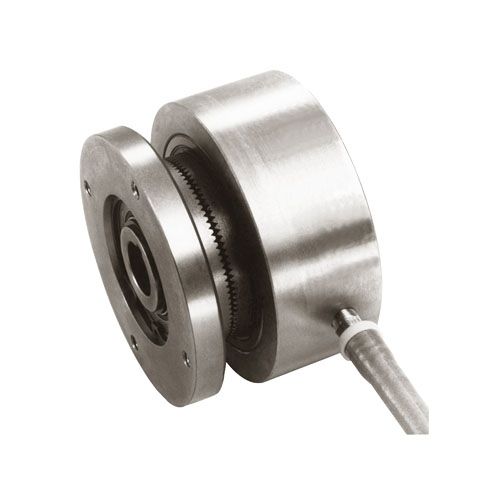

Nexen Metric Tooth Clutch Type 5H70

More Views

Nexen Metric Tooth Clutch Type 5H70

Call For Availability

Code: 907300
Brand: Nexen

Nexen Metric Tooth Clutch Type 5H70

  • 5H Series

  • Flange Mount

  • Tooth Clutches

PDF Download Download
84 100 18
Description

Details

Nexen Metric Tooth Clutch Type 5H70

The 5h70 Series is a metric, air Engaged, straight Bore, flange mounted tooth clutch.

FEATURES:

  • Mounting on driving or driven shaft

  • Bearing mounted piston, air inlet does not rotate

  • Torque proportional to control pressure

APPLICATIONS:

  • Connect/disconnect

  • Reversing/multiple speed

  • Positive drive



Additional Information

Additional Information

Product Type Clutch
PDF Catalogue PDF Download Download
Actuation Method Pneumatic
Ambient Temperature 32 - 150 °F
Bore Size 2.188 in.
Compares With Horton
Clutch Type Tooth
Max. RPM 2000
OEM Numbers
