WPT Automotive Style 13" PTO Clutch - SAE #3

Brand: WPT
Code: WTD-13-130

Industrial Clutch Parts Ltd. supplies a complete range of WPT automotive-style power take-off clutches. Together, ICP and WPT have built an international reputation for excellence in the mechanical power transmission industry.

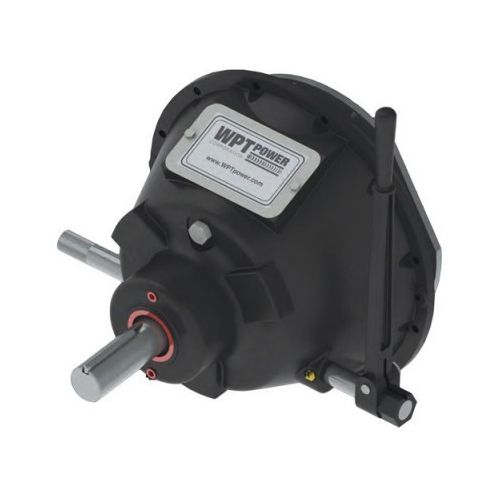

WPT automotive-style PTO clutch is a rugged, heavy-duty power take-off assembly. Designed for engines utilizing automotive or flat-faced flywheels.

  • Model: WTD-13-130, SAE #3
  • Size: 13" PTO clutch
  • Torque: 560 Nm
Out of stock

For further information, please contact us at:

WTD-13-130 Automotive Style PTO Clutch

WPT automotive-style is a spring-loaded mechanical power take-off clutch. The rugged automotive-style design is used with flat-faced flywheels in marine, construction, brush chipper and irrigation applications.

The heavy-duty design is loaded with features and virtually maintenance-free. The PTO eliminates pilot bearings to reduce failures and downtime. Main bearings are sealed and require no adjustments for the life of the bearing. Clutch adjustments are quick and easy with external ball stud and jam nut adjustment points. The simple design compensates for wear with a torsionally-dampened automotive-style spring-loaded clutch.

Product Specific Information

Please enter any product specific information to enable our engineers to specify the correct product or product for you.

Product PTO
Brand WPT
Industry Applications Marine, Construction, Brush Chipper, Irrigation
Actuation Method Mechanical
Compares With Anderton, AP Industrial Clutch, Kraft Power, NACD, PJPower, Rockford, Technodrive, Twin Disc
Clutch Type Power Take Off
Friction Material Organic
Max. RPM 3500
Mounting Type Engine
Torque Rating 560 Nm
SAE Housing Number 3
Sideload Capacity 300 - 900 kgf
Weight Range 68 kg
