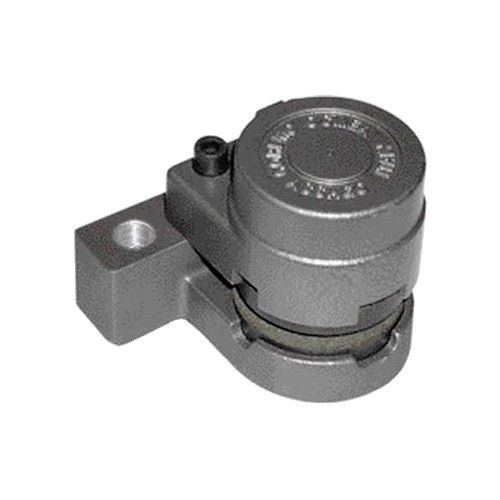

Coremo Pneumatic Modular Brakes - TB & SB

More Views

Coremo Pneumatic Modular Brakes - TB & SB

Call For Availability

Code: TB & SB Modular Brakes
Brand: Coremo

Industrial Clutch Parts Ltd. supply a complete range of Coremo Pneumatic Braking Systems. Available in various models and sizes delivered directly from stock.

Coremo Modular Brakes TB & SB are pneumatic braking elements that can combine into multiple units. The efficient, reliable and proven design offers easy mounting and service, great flexibility and meets specific customer requirements.

TB & SB Features:

  • Max. Braking Force: 450 - 3,600 N
  • Available in a Failsafe Spring Applied Version
  • 8 Disc Sizes Available
  • Options Listed Below

PDF Download Download

Available Options:

A1124 - TB05

Coremo Modular Brake Type TB05

Modular Brake TB05 Features:

  • Braking Force: 490 N @ 6 bar
  • Dynamic Torque: 51 - 164 Nm @ 6 bar
  • Continuous Thermal Capacity: 0.6 kW
View Details

I.T. 040716 TB05 2

Coremo Modular Twin Brake Type TB05-2

Modular Brake TB05-2 Features:

  • Braking Force: 980 N @ 6 bar
  • Dynamic Torque: 126 Nm @ 6 bar
  • Continuous Thermal Capacity: 1.2 kW
View Details

I.T. 040716 TB05 3

Coremo Modular Twin Brake Type TB05-3

Modular Brake TB05-3 Features:

  • Braking Force: 1470 N @ 6 bar
  • Dynamic Torque: 189 Nm @ 6 bar
  • Continuous Thermal Capacity: 1.8 kW
View Details

I.T. 040716 TB05 239

Coremo Modular Twin Brake Type TB05 239

Modular Brake TB05 239 Features:

  • Braking Force: 450 - 3.600 N
  • Dynamic Torque: 100 - 200 Nm @ 6 bar
  • Continuous Thermal Capacity: 0.75 kW
View Details

I.T. 040716 TB

Coremo Modular Brake Type TB

Modular Brake TB Features:

  • Braking Force: 1210 N @ 6 bar
  • Dynamic Torque: 125 - 405 Nm @ 6 bar
  • Max. Thermal Capacity: 80 kJ
View Details

I.T. 040716 TB2

Coremo Modular Twin Brake Type TB2

Modular Brake TB2 Features:

  • Braking Force: 2420 N @ 6 bar
  • Dynamic Torque: 312 Nm @ 6 bar
  • Max. Thermal Capacity: 160 kJ
View Details

I.T. 040716 TB3

Coremo Modular Twin Brake Type TB3

Modular Brake TB3 Features:

  • Braking Force: 3630 N @ 6 bar
  • Dynamic Torque: 468 - 660 Nm @ 6 bar
  • Max. Thermal Capacity: 240 kJ
View Details

I.T. 040716 TB2-V

Coremo Modular Twin Brake Type TB2-V

Modular Brake TB2-V Features:

  • Max. Total Wear: 9 mm
  • Thickness of New Lining: 10 mm
  • Dynamic Torque: 312 Nm @ 6 bar
View Details

I.T. 040716 TB2N & TB3N

Coremo Modular Twin Brake Type TBN 2 & 3

Modular Brake TB2N & TB3N Features:

  • Braking Force: 1740 - 2610 N
  • New Lining Torque: 200 - 450 Nm
  • Max. Thermal Capacity: 160 - 240 kJ
  • Continuous Thermal Capacity: 2.6 - 3.9 kW
View Details

A1841 - SB

Coremo Modular Brake Type SB

Modular Brake SB Features:

  • Braking Force: 1210 N @ 6 bar
  • Dynamic Torque: 125 - 405 Nm @ 6 bar
  • Max. Thermal Capacity: 80 kJ
View Details

A1927 - SB-N35

Coremo Modular Brake Type SB-N35

Modular Brake SB-N35 Features:

  • Braking Force: 812 N
  • Max Thermal Capacity: 80 kJ
  • Minimum Pressure with New Linings: 3.9 bar
View Details
99 100 32
Description

Details

Coremo Pneumatic Modular Braking Systems - TB & SB

Additional Information

Additional Information

Product Type Brake
Brand Coremo
PDF Catalogue PDF Download Download
Actuation Method Pneumatic
Max. Braking Force 450 - 3,600 N
