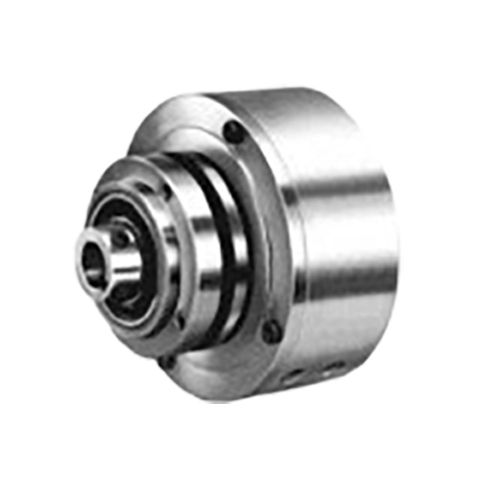

Nexen Shaft Mounted Clutch/Brakes BCB-275 & FCB-450
Nexen Shaft Mounted Clutch/Brakes BCB-275 & FCB-450
Combination clutch-brakes providing highly reliable air clutches and brakes to contribute to the rationalizations of machines and equipment.
Air Engaged
Single Piston
Sealed Bearings
Driven Shaft Mounted
Straight Bore
Nexen Shaft Mounted Clutch/Brakes BCB-275 & FCB-450
Nexen's BCB-275 and FCB-450 Air Champ series of Clutch/Brakes provide a high Torque Transmission and Thermal Capacity. Therefore, the productivity of air clutches and brakes will have a longer operating life due to a greater thermal capacity.
A single piston engagement will eliminate clutch and brake overlap. Nexen's BCB-275 and FCB-450 fits up to 2,2 kW, 3 HP drive motors. Easy retrofitting of existing Nexen clutch-brakes; pilot dimensions are identical to the original Nexen clutch-brake series.
Features:
Simple design
Easy mounting and handing process
Less chance of performance problems
Mounted on driven shaft.
CHARACTERISTICS:
Clutch torque: 9Nm at 5.5bar
Brake torque: 9Nm at 5.5 bar
Automatic facing wear compensation
Shaft diameter: 0.500" or 0.625"
Sheave Mount unit comes with 1-“3V” Groove sheave.
2 Pilot Mount units offer standard bore sizes of 0.500 and 0.625 inches.
