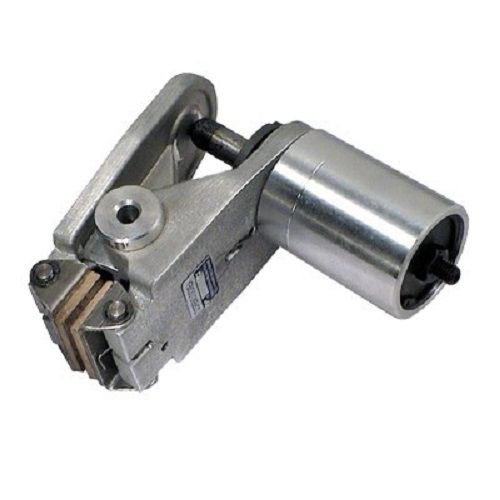

Coremo Air Applied Caliper Brake - Type MPA

More Views

Coremo Air Applied Caliper Brake - Type MPA

Call For Availability

Drawing Number: I.T. 070618 MPA Brand: Coremo

Type MPA Features:

  • Braking Force: 556 - 3888 N @ 6 bar
  • Disc Thickness: 8 mm & 12.7 mm
  • Continuous Thermal Capacity Qc: 1 kW

PDF Download Download
82 100 35
Description

Details

Coremo Air Applied Caliper Brake - Type MPA

Industrial Clutch Parts Ltd. supply a complete range of Pneumatic Caliper Brakes manufactured by Coremo. Our large stock of Coremo Brakes ensures prompt delivery and reduced lead times.

Coremo Air-Applied Caliper Brakes are ideal for industrial applications requiring pneumatic operations for service stops or tension braking. Air Applied Caliper Brake Type MPA is designed for industrial applications where the clamping forces and overall dimensions required are low.

The Coremo MPA air-actuated pneumatic caliper brake is intended for industrial applications which require variation in the clamping forces in response to changes in the air pressure. The input air pressure must not exceed 6 [bar]. The brake can be installed in any position since it has a lever balancing and lining pad alignment system.

The SG iron caliper is designed to withstand the mechanical and thermal stresses generated with satisfactory safety coefficients. The lining pads can be adjusted to ensure that the friction surfaces grip the brake disc at all points. Quality controls ensure a reliable, safe product and trouble-free caliper operation. The brake is suitable for applications where continuous braking or service stops are required.

Additional Information

Additional Information

Product Type Brake
Brand Coremo
PDF Catalogue PDF Download Download
Actuation Method Pneumatic
Actuation Type Active
Braking Force 556 - 3888 N @ 6 bar
Brake Type Caliper
Brake Disc Thickness 8 - 12.7 mm
Compares With ICP, Twiflex
Max. Continuous Temp Qc: 1kW
Weight Range 1.2 - 2.3 kg
OEM Numbers
