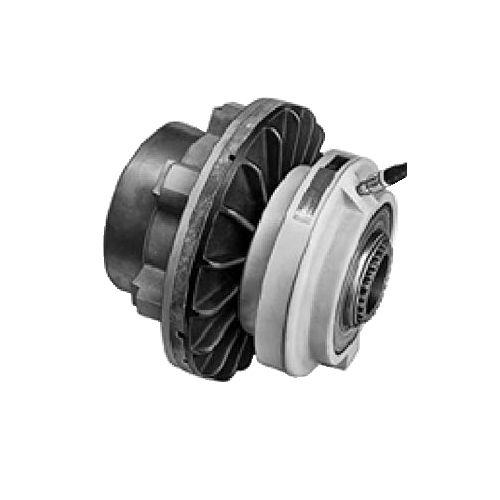

Nexen Friction Clutch Type XHW

More Views

Nexen Friction Clutch Type XHW

Call For Availability

Code: Nexen Friction Clutch Type XHW
Brand: Nexen

Nexen Friction Clutch Type XHW

  • Extra Heavy Weight

  • Air Engaged

  • Straight Bore

  • Shaft Mounted

PDF Download Download
Description

Details

Nexen Friction Clutch Type XHW - Extra Heavy Weight Models.

The XHW Friction Clutch provides:

  • Static Torque capacity: up to 5000 In. Lbs. @ 80 psi

  • Maximum Operating Speed: 1200 rpm

  • Transmitted Horsepower values: 5.00 - 50.00

  • Thermal Horsepower rating: 2.25 @ 1200 rpm

  • Heat Sink capacity: 200,000 Ft. Lbs

Nexen's XHW features sealed ball bearings and splined hub. It is available in a pilot mount, integral sheave, and coupling models.

Additional Information

Additional Information

Product Type Clutch
PDF Catalogue PDF Download Download
Industry Applications Connect/disconnect, tension control...
Actuation Method Pneumatic
Bore Size 60mm or 2.375"
Compares With Horton
Clutch Type Friction
Max. RPM 1200
Torque Rating 600Nm at 6 bar
OEM Numbers
